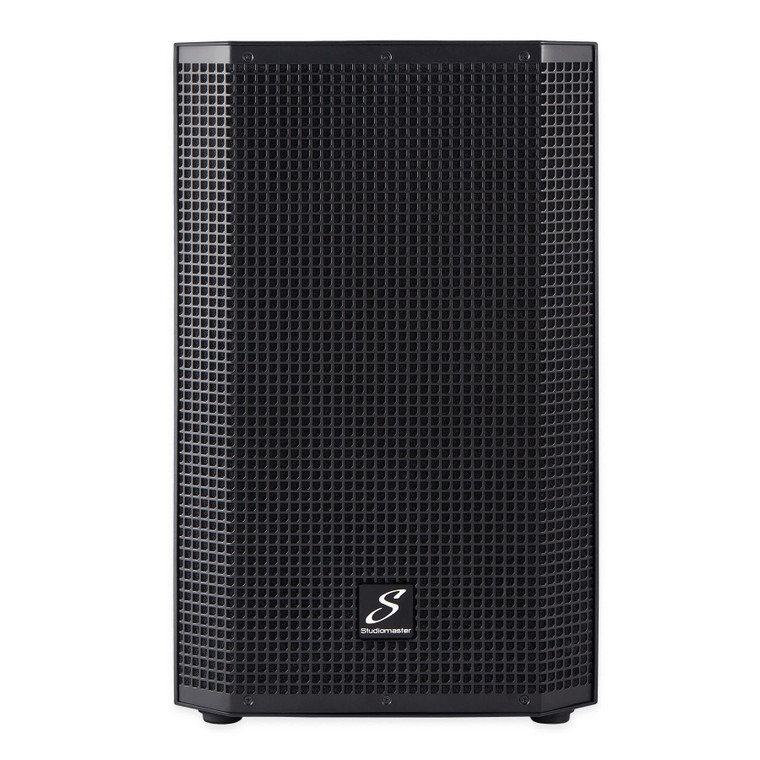

Studiomaster Vortex 12A 12" 1400W Active Lightweight Coaxial PA Speaker

Sold with a 12 MONTH Return to Base Warranty from STUDIOMASTER
Free Shipping
Current Stock:

Awaiting stock delivery

Call 01159 383892 for availability

A brand new 12” active moulded speaker cabinet  featuring high performance 1400W (peak) power amplifiers and a unique coaxial speaker configuration. The Vortex series are designed to perform and exceed your expectations and requirements for lightweight, portable PA cabinets.

The all new VORTEX series feature set is considerable, with Bluetooth input with True Wireless Stereo, built in DSP control, dual 35mm top hat sockets, triple input channels, multiple M10 flying points, up to 3 carry handles for portability and much more.

ROBUST: Full face front grille – Moulded cabinet


PORTABLE: Multiple handle positions – 12A – top and both sides

POWERFUL: 1400W 2-way amplification – 124-125dB SPL

VERSATILE: Multiple M10 flying points. Dual top hat sockets: Straight (0 degree) – Angled (10 degree) – Floor monitor suitable


  • BLUETOOTH PLAYBACK with TWS facility
  • 24 BIT DSP 3 Band EQ. Multiple operation modes. Limiter. Time delay
  • MULTIPLE INPUTS 2 x microphone / line, 1 x 3.5mm line & Bluetooth
  • LINK OUTPUT Selectable between input A and full mix


  • Cabinet Type:12″ 2-Way Coaxial Active
  • Max SPL: 125dB
  • Amp Peak: 1400w
  • Max PGM: 700w
  • Amp RMS: 350w (300+50)
  • Weight (Net): 15.5kg
  • Freq Response: 50Hz-20kHz
  • Input Sensitivity: 0dBu
  • Coverage (H X V): 80 X 80 Degree
  • LF Driver: 12″ / 65mm VC
  • HF Driver: 34mm Vc / 1″ Throat
  • Crossover Frequency: 2.2kHz
  • 24bit DSP: Mode Select, 3 Band EQ, Delay, Volume
  • DSP Modes: Music, Live, Dj, Speech, Monitor
  • Connection: 2 x XLR/Jack Input, 1x 3.5mm, XLR Output
  • Connectivity:  Bluetooth Playback
  • Mounting:  Dual Top-Hat, 5x M10 Flying Points
  • Dimensions (W/H/D): 360 / 585 / 310mm
