Sold with a 36 MONTH Return to Base Warranty from ELECTRO-VOICE

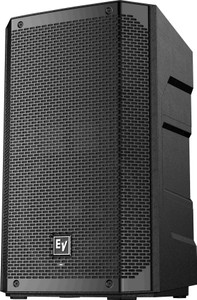

Designed for discerning audio professionals, the ETX-10P delivers a linear frequency response across an extended range. The 10” woofer ensures deep low-frequency output, while the 1.25” compression driver provides high-frequency extension up to 20kHz for accurate sound reproduction in various applications. With a maximum SPL of 134dB, this unit maintains clarity and fidelity even at elevated volume levels.
Consistent coverage is provided. Whether positioned at the front, sides, or back of the audience, sound remains detailed. The patented waveguide offers uniform bandwidth response and enables wide dispersion. When placed at the front of the enclosure, the waveguide reduces the need for latency correction, resulting in consistent performance in various situations.
The system DSP includes built-in presets intended for convenient setup. These presets cover options for speaker application, crossover frequencies, and top/subwoofer combinations. The ETX-10P utilizes boundary compensation filters to maintain consistent sound in various configurations, such as floor monitor, tripod placement, or suspension. Adjustable delay, a 3-band EQ, and high-crossover points are also available for user sound control.
Features
- High performance loudspeaker, perfect for professional applications
- Packs a punch with 2000W peak power handling
- Highly sensitive transducers for ultra-clear sound
- Impactful bass from a 10” LF SMX woofer
- Pristine high end from a 1.25” titanium compression driver
- Compact, powerful, and efficient class-D amplification
- Pristine sound at high volumes with a maximum 134dB peak SPL
- Ultra-wide dispersion thanks to Signal Synchronised Transducers waveguide design
- Best-in-class processing and control with the integrated FIR-Drive DSP
- Easy to use LCD display with rotary knob on the back of your speaker
- Solid ply-birch enclosure ensures minimal resonance for articulate sound
- Rugged construction with a scratch and scuff resistant coating
- Easy to mount with integrated pole receptacles
- Transport with ease thanks to the ergonomic carry handles
- Ideal for live sound and installation applications
Specifications
- Frequency Response (-3 dB): 85Hz – 20 kHz
- Frequency Range (-10 dB): 65Hz – 20 kHz
- Maximum SPL 1m: 134 dB Peak
- Coverage (H x V): 90° x 60°
- Power Rating: 2000W
- LF Transducer: SMX2100 254mm (10”)
- HF Transducer: DH3-B 1.25'' Titanium Compression Driver
- Crossover Frequency: 1700Hz
- Connectors: 2 x XLR/TRS Combo Jack & 1 x XLR Link Output
- Enclosure Material: 18mm, 13-Ply Birch Plywood with EV Coat
- Grille: 16AWG Steel with Powder coat
- Suspension: 8 x M10 Suspension Points
- Power Consumption: 1.6 to 0.8 A
- Weight: 20.3 kg
- Dimensions
- Height: 526 mm
- Width: 330 mm
- Depth: 365 mm
