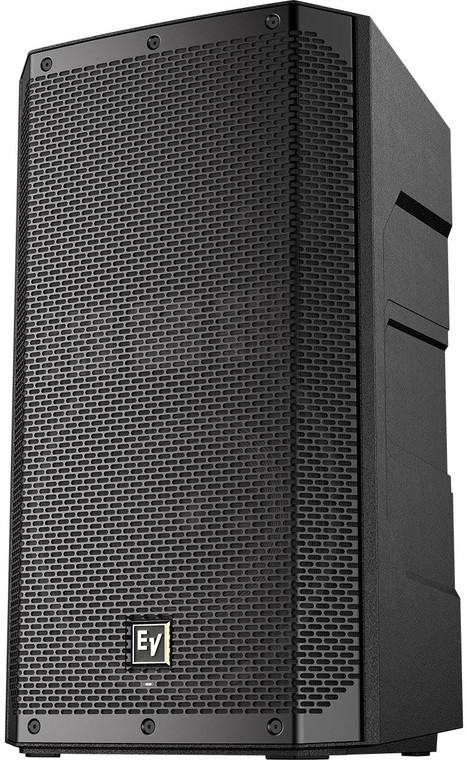

Electro-Voice ELX200-12P Lightweight 12" 1200W Active Speaker

It's easy to get lost. Endless menus, complex parameters, unnecessary switches - they all just get in the way. That's why the Electro-Voice ELX200-12P doesn't have them. Intelligently-designed for intuitive operation, ELX200 loudspeakers pump out sensational sound in seconds.

Configure up to six ELX200 speakers simultaneously from anywhere in the room. The QuickSmartMobile app puts control right in the palm of your hand thanks to Bluetooth connectivity. And when you're adjusting your speakers from their rear panel, take advantage of EV's best-in-class QuickSmartDSP. Application-specific presets, user-programmable presets, visual monitoring and more. It's all there to give you quick and simple adjustability.

But just because it's easy to use doesn't mean that quality is sacrificed. Quite the opposite in fact. A 1200W amp drives the high-sensitivity transducers to deliver phenomenal full-range audio with a huge maximum SPL of 130dB. All without distortion. And with its rugged construction and pro-grade hardware, you have everything you need for both portable and installed applications.

Features

• Phenomenal versatility in an ultra-lightweight format
• Wireless control and monitoring with the Bluetooth® EV QuickSmart Mobile app
• Control your sound whilst you're in front of your system
• App can be used to configure up to six ELX200 loudspeakers simultaneously
• Receive immediate notifications during critical performance conditions
• Super-efficient Class-D power amplifier for distortion-free maximum SPLs
• High-sensitivity transducers designed and engineered by Electro-Voice themselves
• QuickSmartDSP for best-in-class processing via EV's signature single-knob user interface and LCD
• Simple setup with four presets - Music, Live, Speech, and Club - and five user-programmable presets
• 3-band EQ, sub/top system-match crossovers, input level control and metering, and master volume for gain structure optimisation
• Patented Electro-Voice SST waveguide design for enhanced acoustic performance
• Larger waveguide placed forward in the enclosure to time-align the woofer and tweeter
• Exceptionally precise and consistent coverage with a deeper, tighter bass response
• Lightweight and compact composite enclosures with internal reinforcement
• Minimal resonance with increased rigidity and strength
• Professional grade hardware with three M10 suspension points and an integrated pole mount
• Easy to transport with EV's signature three-handle design
• Undergone over 500 hours of Electro-Voice's abuse and endurance testing for maximum reliability
• Ideal for use in both portable and installed applications

Specifications

• Frequency Response:
  • -3dB: 57Hz - 16kHz
  • -10dB: 51Hz - 20kHz
• Maximum SPL: 130dB
• Coverage: 90° x 60°
• Power Rating: 1200W
• LF Transducer: EVS-12M, 12'' / 300mm
• HF Transducer: DH-1C, 1'' titanium compression driver
• Crossover Frequency: 1700Hz
• Connectors:
  • 1 x Stereo RCA input
  • 2 x XLR-1/4'' TRS combo jacks
  • 1 x XLR
• Cabinet:
  • Material: Polypropylene
  • Grille: 18-AWG steel with powder coated finish
  • Colour: Black
  • Suspension: 3 x M10 suspension points
• Power: 100-240V, 50/60Hz (1.8A consumption at 1/8 power)
• Dimensions: 629mm x 363mm x 344mm / 24.8'' x 14.3'' x 13.6'' (H x W x D)
• Weight: 15.6kg / 34.4lbs
