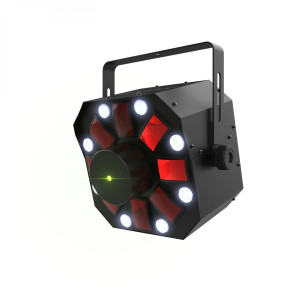

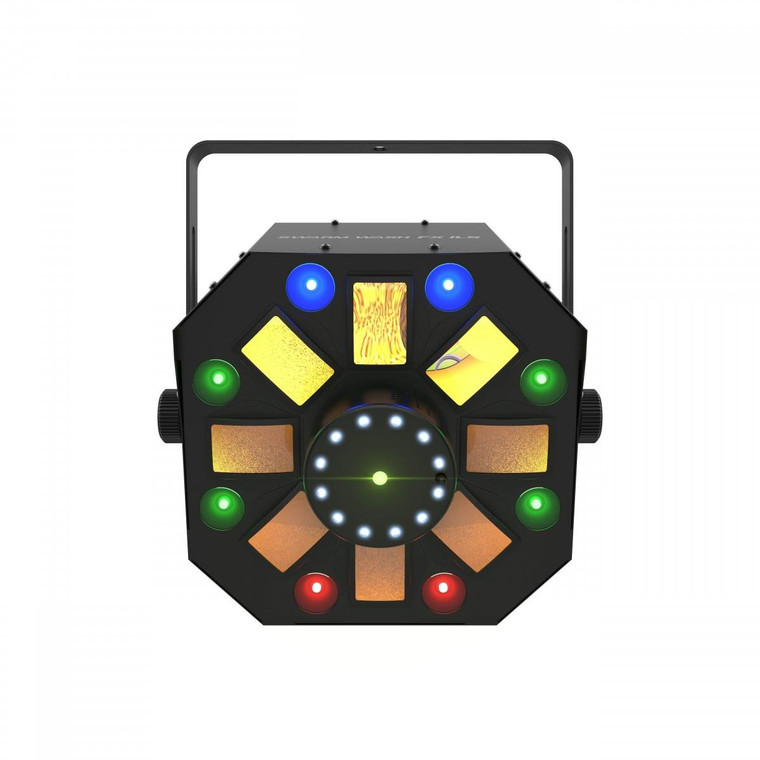

Chauvet DJ Swarm Wash FX ILS Lighting Effect

The Chauvet DJ Swarm Wash FX ILS Lighting Effect is a versatile LED multi-effect that combines wash lighting, a rotating derby, a laser and strobe lights. Thanks to its design, this multi-effect can create a broad range of effects to suit a variety of moods. Then, with its ability to creatively blend and combine all kinds of colours from its various lights at once, the Swarm Wash will fill any venue with its programs.

Thanks to Chauvet's new Integrated Lighting System design, any ILS-equipped lights can be programmed and controlled from a GigBAR Move ILS without the need for DMX. However, if you still prefer traditional programming in your workflow, you can also run the Swarm Wash FX ILS via 3-pin XLR or wirelessly through D-Fi USB, to receive either master/slave or DMX control. Flexible, powerful control, and versatile lighting effects combine to create impactful, eye-catching effects.

Please note: ILS functionality requires the GigBAR Move + ILS (not included)

Features

• LED multi-effect with ILS compatibility
• Four-in-one design combines RGB and UV wash lights, an RGBAW rotating derby, a red/green laser, and white SMD strobes
• D-Fi compatibility lets you control this multi-effect for DMX and master/slave wirelessly
• Optional IRC6 controller allows for an extra form of wireless control (sold separately)
• Laser projects thousands of beams for wide, room-filling coverage
• Easy and accessible programming through its built-in programs
• Automatic and sound-activated programs make it easy to create dynamic, complex shows
• Power outputs for fast and easy power linking to other units
• Fits comfortably inside Chauvet's CHS-40 VIP Gear Bag (sold separately)

Specifications

• DMX Channels: 2 or 18
• DMX Connectors: 3-pin XLR
• Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 2 W (650 mA) 50,000 hours life expectancy
• Light Source (Wash): 8 LEDs (quad-colour RGB + UV) 1.5 W (600 mA), 50,000 hours life expectancy
• Light Source (Strobe): 12 LEDs (white) 1 W (300 mA), 50,000 hours life expectancy
• Light Source (Laser): 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
• Strobe Rate: 0 to 20 Hz
• Coverage Angle (Laser): 82°
• Coverage Angle (Swarm): 65°
• Coverage Angle (Strobe): 71°
• Coverage Angle (Wash): 46°
• Power Linking: 11 units @ 120 V; 20 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 51 W, 0.7 A @ 120 V, 60 Hz. 50 W, 0.4 A @ 230 V, 50 Hz
• Optional Controllers: IRC6 (sold separately)
• EN/IEC Classification: 60825-1:2014
• FDA Performance Standard: Compliant except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
• Approvals: CE, FDA, RoHS, UKCA
• Weight: 9.5 lbs (4.3 kg)
• Size: 13.1" x 13 " x 9.4" (335 mm x 332 mm x 241 mm)
