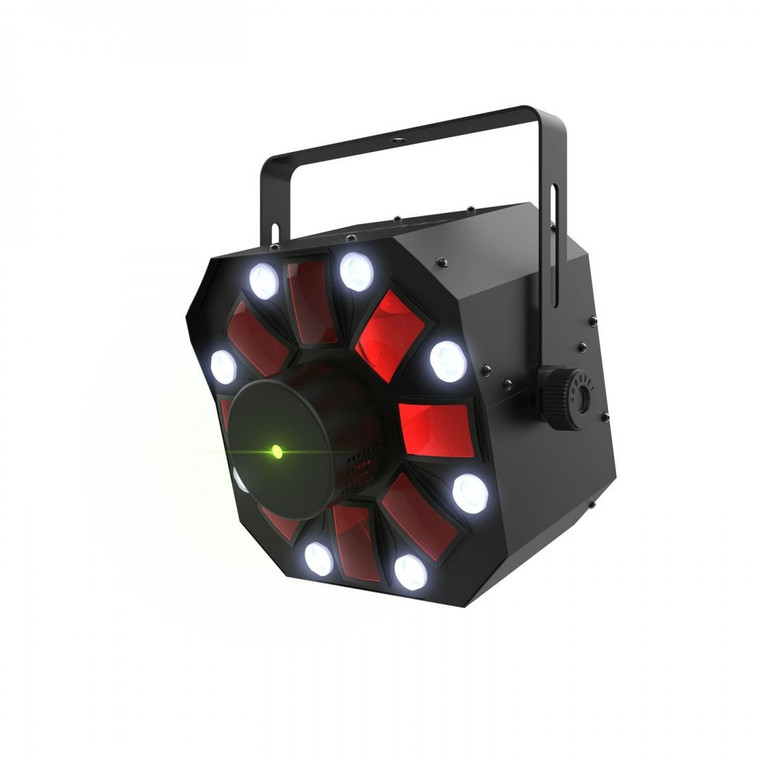

Chauvet DJ Swarm 5 FX ILS Lighting Effect

The Chauvet DJ Swarm 5 FX ILS is a 3-in-1 lighting effect that will add excitement to any event. It features an RGBAW rotating, a red-green laser and a white strobe effect. This results in dynamic, colourful light shows, all from a single unit.

There are a range of control modes to choose from: DMX, Master/Slave, automatic, sound-activated, and even wireless via D-Fi USB compatibility. And there's also the new ILS system, allowing for easy synchronisation with a master Chauvet DJ GigBAR Move + ILS unit.

Please note: ILS functionality requires the GigBAR Move + ILS (not included)

Features

• Compatible with other ILS products for seamless system integration
• RGBAW rotating derby, RG laser, and white strobe for 3-in-1 LED action
• Compatible with D-Fi USB for wireless control via Master/Slave or DMX
• Thousands of red and green laser beams projected via the laser
• Allows for separate colour and program control
• Automated, sound activated, Master/Slave and DMX modes
• Power link units for a more efficient setup

Specifications

• DMX Channels: 9
• DMX Connectors: 3-pin XLR
• Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
• Light Source (strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
• Light Source (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
• Strobe Rate: 0 to 20 Hz
• Beam Angle (strobe): 17°
• Field Angle (strobe): 35°
• Coverage Angle (laser): 100°
• Coverage Angle (Swarm): 65°
• Illuminance (strobe): 823 lux @ 2 m
• Power Linking: 15 units @ 120 V; 26 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz
• Power and Current: 62 W, 0.3 A @ 230 V, 50 Hz
• Weight: 9.8 lb (4.5 kg)
• Size: 9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)
