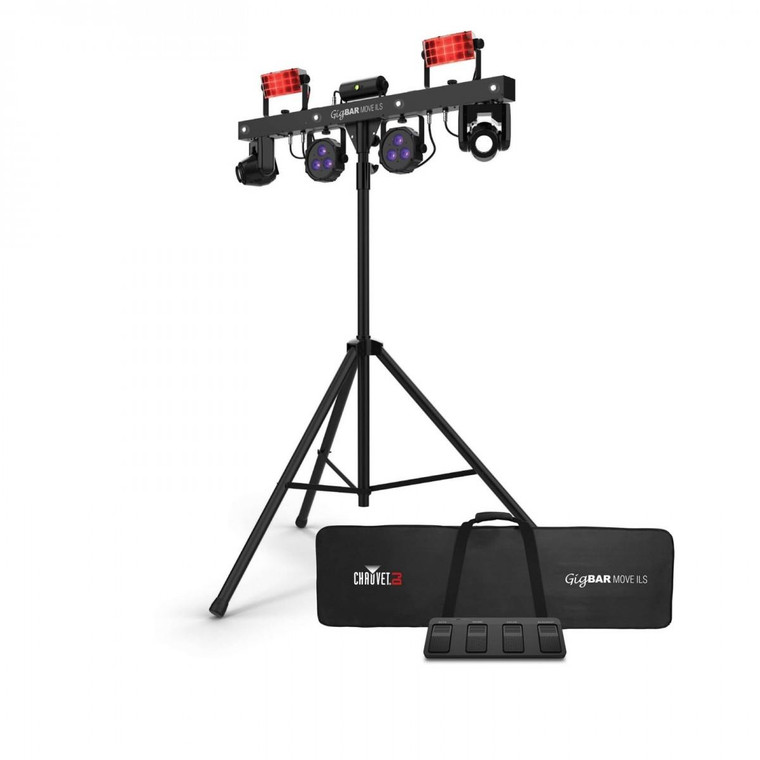

Chauvet DJ GigBAR Move ILS 5 in 1 Complete DJ Lighting System

Chauvet DJ's integrated lighting system

DMX is daunting, but Chauvet DJ’s Integrated Lighting System (ILS) isn’t. Using the new GigBAR Move ILS as its core, ILS enables advanced, coordinated shows across multiple fixtures. So, you can get a complete lighting ecosystem, without the complications.

Any ILS fixture can slave to the GigBAR Move. Lights and effects will then work together, without the need for any programming. Just use automatic, sound-to-light, or manual control modes. And you can adjust colour, speed and more as you go.

All-in-one lighting

Consisting of two moving heads, two par cans with RGB and UV colour options, a red/green laser, and two LED derbies, the GigBAR Move ILS provides a complete lighting experience, with a complete spectrum of colours and effects to build and combine to enrapture your audience. Pair this with its versatile control options, from standalone to wired DMX, D-Fi wireless DMX, or wireless RF remotes and footswitches, and this light bar proves itself incredibly flexible. That's saying nothing the DMX-free possibilities from the ILS control, which will let you program both the bar itself and your other fixtures directly from this unit. The GigBAR Move proves itself one of the most powerful light bars for control and connectivity on the market.

Features

• Five-in-1 lighting system with moving heads, derbies, washes, laser and strobe effects all in one
• ILS compatibility for wireless DMX-free programming and control of other ILS fixtures
• Built-in D-Fi Transceiver sends and receives both ILS control signals and wireless DMX
• Gobo and colour wheels in moving heads with independent controls for unique effects
• Totem Mode for keeping moving heads on the dance floor
• Included tripod, wireless footswitch, RF remote, and carry bags
• Ultraviolet LEDs illuminates fluorescent objects for unique blacklight effects
• Individual control over each lighting effect provides flexible programming
• Controllable via standalone, wired DMX, wireless RF remote, and wireless footswitch

Specifications

• DMX Channels: 3, 27, or 46
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/180°
• Colours (Moving Head): 7 + white, continuous scroll at variable speeds
• Gobos (Moving Head): 7 + open, continuous scroll at variable speeds
• Light Source (Pars): 3 LEDs (quad-colour RGB + UV), 3.5 W (1 A)
• Light Source (Strobe): 4 LEDs (white & UV), 5 W (1 A)
• Light Source (Derby: 6 LEDs (2 red, 2 green, 2 blue), 5 W (1.6 A)
• Light Source (Moving Head): 1 LED (cool white), 10 W (2.3 A)
• Light Source (Laser): 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
• Strobe Rate (All Effects): 0 to 20 Hz
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Beam Angle (Moving Head): 11°
• Beam Angle (Pars): 19°
• Beam Angle (Strobe): 8°
• Coverage Angle (Derby): 131°
• Coverage Angle (Laser): 93°
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max. Unobstructed Distance: 100 ft (30.5 m)
• Illuminance (Pars): 1,205 lux @ 2 m (per par)
• Illuminance (Moving Head): 1056 lux @ 2 m (per head)
• Illuminance (Strobe): 86 lux @ 2 m (per LED)
• Power Linking: 7 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 81 W, 1.1 A @ 120 V, 60 Hz
• 79 W, 0.6 A @ 230 V, 50 Hz
• Dimensions: 43 x 5.7 x 17.7 in. (1100 x 144 x 449 mm)
• Weight: 23.4 lbs. (10.7 kg)
