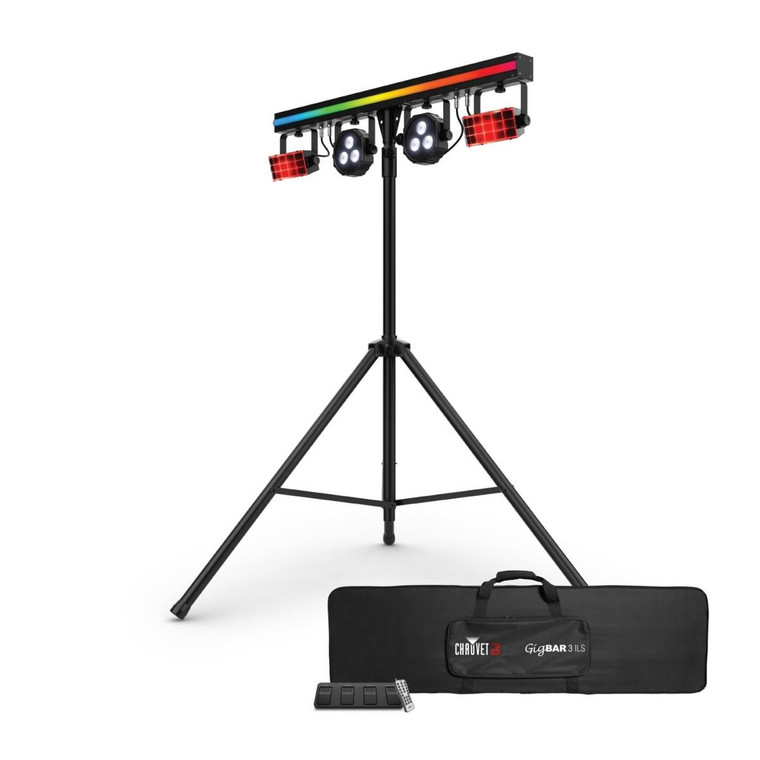

Chauvet DJ GigBAR 3.0 ILS LED Lighting System with Tripod Stand & Case

All-in-one lighting system

The GigBAR 3 ILS combines multiple lighting effects into a single, convenient unit. Two LED derbies, two par lights, and a vibrant LED strip are mounted on one bar, giving you a full range of effects without needing several separate fixtures. This means fewer cables, faster setups, and easier transport to and from gigs. Whether you’re lighting a dancefloor, stage, or party venue, the combined effects create movement, colour, and atmosphere that keeps audiences engaged throughout the event.

Easy setup for mobile events

This system is designed to make life easier for DJs and entertainers on the move. The included tripod stand lifts the lights to the right height quickly, while carry bags help protect the gear during transport. The wireless footswitch allows you to change lighting modes without leaving your performance area, helping you stay focused on the music. With everything mounted on a single bar and ready to go, you can get your lighting rig running in minutes rather than spending time assembling multiple fixtures.

Flexible control options

The GigBAR 3 ILS gives you several ways to control your lighting depending on your setup. The built-in LCD display makes navigating settings straightforward, while the included RF remote and wireless footswitch allow quick adjustments during performances. For more detailed control, the fixture also supports DMX operation. This flexibility means the system works equally well for beginners who want simple plug-and-play lighting and experienced users who want precise control over their effects.

Sync lighting with the ILS ecosystem

ILS compatibility allows the GigBAR 3 ILS to connect with other ILS-enabled lighting fixtures for synchronised shows. Once linked, multiple lights can run coordinated programmes and effects without complicated programming. This makes it easy to build a larger lighting setup that still operates smoothly from a single control system. As your rig grows, the GigBAR 3 ILS can remain at the centre of your lighting arrangement, providing a reliable and scalable solution for events of different sizes.

Features

• All-in-one lighting bar with derby effects, pars, and LED strip
• Sound-activated programmes respond automatically to music
• ILS compatibility for synchronised lighting with other fixtures
• Wireless footswitch lets you trigger effects during performances
• Clear LCD display for quick access to settings
• Includes tripod stand for fast event setup
• Carry bags make transport and storage easier
• Multiple control options including remote, DMX, and onboard controls

Specifications

• Product Name: Chauvet DJ GigBAR 3 ILS
• DMX Channels: 2, 21, or 132
• DMX Connectors: 3-pin XLR
• Light Source (Pars): 6 LEDs (RGB + UV) 3 W
• Light Source (LED Strip): 74 LEDs (Red, Green, Blue) 5 W
• Light Source (Derby): 6 LEDs (Red, Green, Blue) 3 W
• LED Life Expectancy: 50,000 hours
• Strobe Rate: 0 to 20 Hz
• Beam Angle (Pars): 13°
• Field Angle (Pars): 24°
• Coverage Angle (Derby): 114°
• Coverage Angle (LED Strip): 114°
• Illuminance (Pars): 1,205 lux at 2 m per head
• Stand Height: 1.5 m to 2.4 m
• Tripod Length: 1.2 m
• Tripod Mount Size: 37.4 mm
• Cable Length: 2.84 m
• D-Fi Operating Frequency: 2412 to 2484 GHz
• Footswitch Operating Frequency: 433 MHz
• Footswitch Maximum Distance: 30.5 m
• Footswitch Battery: 9 V, 300 mA
• Power Linking: 15 units at 120 V, 8 units at 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz
• Power Consumption: 47 W at 120 V
• Power Consumption: 45 W at 230 V
• Controllers: ILS Command, RF Remote
• Approvals: CE, RoHS, FCC
• Dimensions (W x D x H): 1047 mm x 94.5 mm x 272 mm
• Weight: 6 kg
