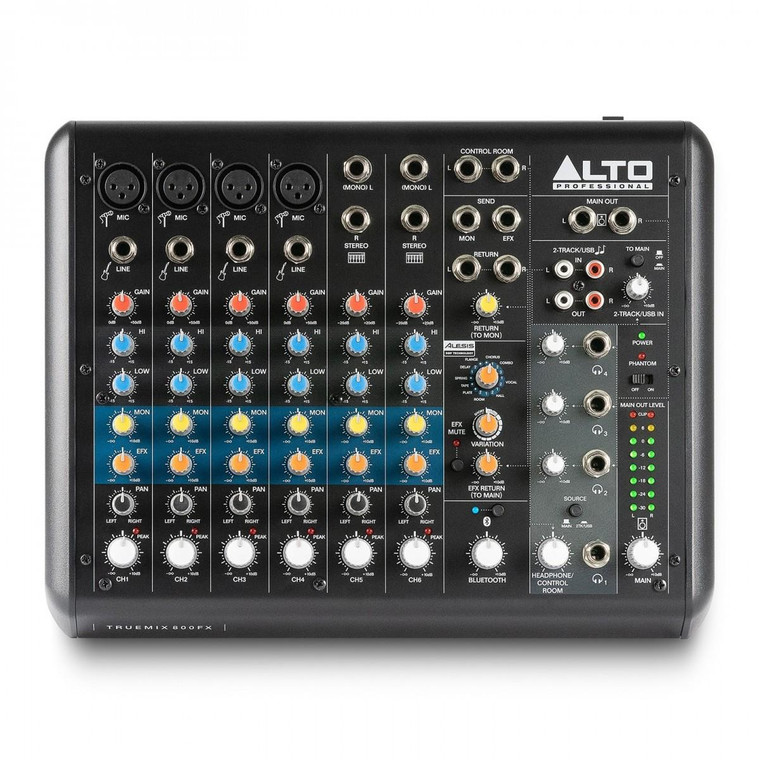

Alto TRUEMIX 800FX 8 Channel Compact Mixer with USB, Bluetooth & Alesis Multi Effects

The Alto TRUEMIX 800FX 8-Channel Mixer with USB, Bluetooth and Multi Effects is a compact and portable mixing solution with an integrated USB audio interface, high-speed Bluetooth wireless connectivity. Equipped with six analogue channels (four mono, two stereo), a two track and USB in and out, a dedicated Bluetooth channel, as well as an extensive effects unit; the TRUEMIX 800FX is perfect for home studio applications.

From music production to podcasting and even live-streaming; the TRUEMIX 8000FX provides all the connectivity and controls you need to process a variety of audio sources. You can also monitor your sound using the four headphone outputs and additional stereo control output. Each channel features a two-band EQ as well as panning controls, FX parameter controls, and send and return, so you can mix and shape your sound. Visual volume information is provided by the eight-segment LED VU meter, providing precise level monitoring.

The four mono input channels also feature built-in Phantom Power so you can use studio-grade microphones such as condensers. All the input provides high-headroom circuitry, ensuring low-noise operation and superior sound quality compared to standard mixers.

Versatile compact audio mixer

Whether you are performing on stage, recording a podcast, or making music in your home studio, it is vital that you have a low profile and simple mixer that gives you full control over your sounds. Check out the Alto TrueMix 800FX, a dynamic, compact, and useful mixer with a vast array of features to help you, consolidate your equipment and adjust your audio to perfection. Featuring four mono channels with a jack and an XLR input and two stereo channels with dual TRS connectors, each of these channels is equipped with a two band EQ, a left to right pan, FX, and send/return controls, as well as a volume attenuator and gain control. A USB connector on the back of the mixer allows you to hook it up to a PC for digital audio in and out, giving you the ability to record and play digital audio files.

Comprehensive control section

Channels one to four all feature phantom power, allowing you to operate condenser microphones and other types that require power to their active circuits to operate. Balanced stereo channels five and six can function as mono or stereo inputs, so that you can plug in any stereo equipment or instrument. To the right of the six channels is the EFX section, featuring 16 built in Alesis multi-effects with variation and return controls. Alongside the 6 main channels, the TrueMix 800FX is equipped with a two track/USB section with dual RCA in and out, as well as an attenuator that works for both applications. Additionally, the TrueMix 800FX also has a Bluetooth connection capability, with a mix minus return for feedback free device pairing.

Ergonomic and easy to use

Four headphone outputs, each with their own attenuator give you the option to plug in four single stereo TRS jack headphones or monitors. Also connected to the headphone bus is a control room output, which features a further stereo left and right TRS output, controlled by the same attenuator as headphone output one. All knobs on the TrueMix 800FX are colour coded so that you can easily distinguish them and their purpose. To help you use the mixer effortlessly, there is a map on the faceplate of the mixer itself, displaying the signal path to you. A master volume control on the bottom right of the TrueMix 800FX features an eight segment LED VU meter that displays visual volume information for the main output. The mixer is powered by an included 18V DC power supply with a mains plug and features an on and off switch. Extra knobs are supplied with the TrueMix so that if you lose one you have a replacement. The TrueMix 800FX is an essential item for people looking for a useful, compact and versatile mixer.

Features

• Compact and powerful mixer suited to a range of professional applications
• Six channels with a two band EQ, a left/right pan, effects controls, and volume and gain attenuators
• Four mono channels with XLR and TRS inputs and phantom power for condenser microphones
• Two stereo channels for plugging in any stereo instruments or equipment
• Effects section with 16 built in Alesis multi-FX, a variation and EFX return control
• USB port for connecting to a PC, recording and playing digital audio files
• Headphone section with independent volume knobs for each output
• Control output connects to the headphone bus and is controlled by output one
• Two track/USB bus controls the USB and two track RCA volume and signal path
• Colour coded knobs for easily distinguishable controls
