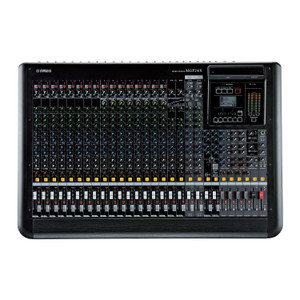

The Yamaha MGP32X is a 32-channel mixer designed to offer the warmth and tonal characteristics of analogue mixers while providing the advanced functionality of a digital console. Each of the 32 channels is equipped with comprehensive features, enabling users to achieve optimal sound quality and control.
The system includes two separate effects channels: one features a dedicated REV-X reverb, and the other is equipped with an SPX digital multi-effects processor. Channels 9-24 are provided with a one-knob compressor to allow for quick adjustment of compression without the need for multiple settings. If a channel requires compression, it can be easily adjusted using this control.
In designing the EQ section of the MGP series Yamaha studied classic EQ sound to discover how to capture that classic warm analogue EQ sound. The answer is their X-pressive EQ, powered by virtual circuit modelling. This gives you fantastically musical and natural sounding EQ on each of the 32 input channels.
D-PRE Microphone Preamps
The MGP32X features newly refined D-PRE mic preamps that employ an inverted Darlington circuit design and deliver more power with lower impedance. Initially intended for use with Yamaha's high-end recording equipment, these discrete class-A preamps ensure your signal retains the original character and musical expression.
X-Pressive EQ
Throughout the development of the innovative VCM (Virtual Circuit Modelling) effects, Yamaha became increasingly focused on reproducing the warmth and musicality of classic vintage EQs. After precisely modelling the original circuitry from some of the most sought-after EQ modules from the past, Yamaha discovered a characteristic ''X-shape'' of the frequency curves that was unique to these units. More than just a means of tweaking your mix, the precise response and steep shelving of both the high and low frequencies make the X-Pressive EQ a powerful sound-shaping tool that provides control of every aspect.
1-Knob Compressors
The MGP32X features newly upgraded 1-knob compressors with LED indicators that allow you to visually monitor when compression ''kicks in'' on each channel. These intelligent compressors add optimally set compression to a wide variety of input sources by simply adjusting a single control - eliminating the need to set up and configure complex outboard equipment.
Hybrid Channel
Combining traditional analogue feel with the functionality that only digital technology can offer, the MGP mixers are equipped with a proprietary DSP that delivers three essential features - Priority Ducker, Leveller and Stereo Image. Offering unique functionality with superior sound, the Hybrid Channel is also equipped with high-performance A/D and D/A converters, a mid-sweep and a three-band EQ.
Dual Digital Effects
MGP series mixing consoles provide two separate studio-quality effects processors for tailoring your sound to suit any application and venue. With user-friendly operation, the REV-X reverb delivers three musical and natural high-resolution reverb effects - a first for any analogue Yamaha mixer.
MGP Editor
Yamaha MGP Editor is a free software application can download to your iOS device. Utilising a simple and intuitive graphic display, MGP Editor provides control of REV-X and SPX effects parameters, as well as Hybrid Channel's Priority Ducker, Leveller and music playback settings.
Features
- 24 microphone inputs
- Discrete Class-A 'D-PRE' head amps
- Musical 'X-Pressive' EQ
- Professional 1-knob compressors
- Dual digital effects processors: REV-X and SPX
- Stereo hybrid channels DSP effects (Leveller, Stereo Imager, Priority Ducker)
- Digital connectivity for iPod/iPhone
- USB Device record/playback (16-bit WAV, MP3)
- 31-band GEQ (9 flex-band / 14 fixed-band)
- Master 3-band compressor assigned to stereo bus
- Free MGP Editor
Specifications
- Mixing Channels: 32 Line Inputs (24 Mono and 4 Stereo)
- GROUP: 4 GROUP Buses + ST Bus
- AUX: 6 AUX Sends + 2 FX Sends
- MATRIX: 1 Matrix Out
- Microphone Inputs: 24
- Phantom Power: 48V (Per Channel)
- Line Inputs: 16 Mono + 4 Stereo
- Digital I/O: USB Device, iPod/iPhone
- Frequency Response: 20Hz - 20kHz, +0.5dB/-1dB
- Total Harmonic Distortion: 0.02 Percent
- Equivalent Input Noise: -128dBu
- Residual Output Noise: -94dBu
- Crosstalk: -74dB @ 1kHz
- Power Consumption: 86W
- Power Requirements: 100V - 240V, 50Hz/60Hz
- Dimensions: 1027mm x 169mm x 565mm (H x W x D)
- Weight: 19kg
