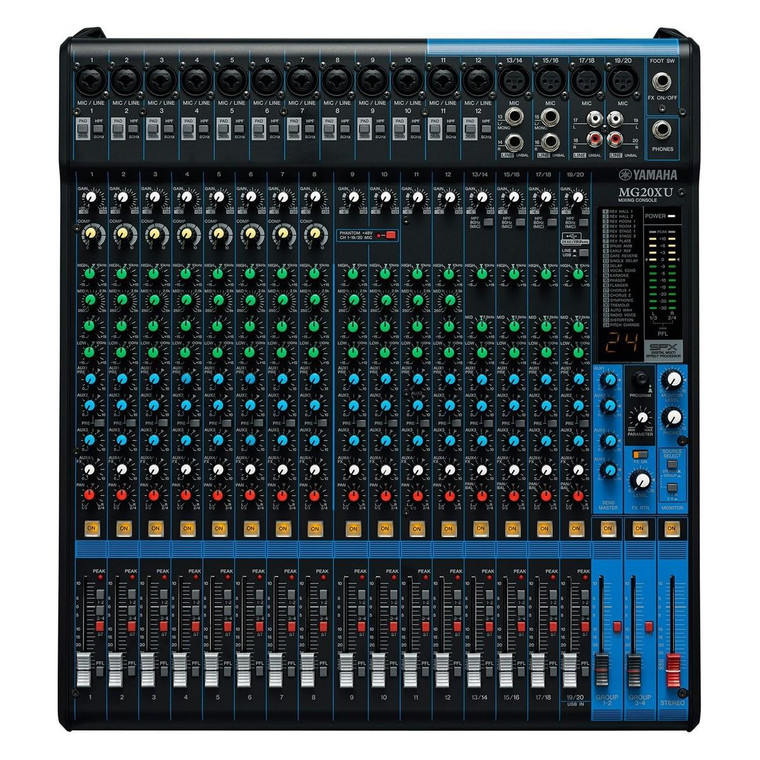

Yamaha MG20XU 20 Channel Analogue USB Mixer with 24 SPX Effects

Yamaha XU Range

Rather than the standard MG Series mixers, a select number of mixers also feature the XU functions. This includes a built in USB interface, which allows a stereo output to be sent straight from the mixer and can be plugged in to any computer or laptop ready for recording. The bonus with this Yamaha mixer is the USB In feature, which allows one of the stereo tracks to be used in order to playback any recording through the mixer once recorded. This is a great tool for those who want to plug all their equipment in through one desk. On top of that, recording is possible straight away with the included version of Cubase AI. Lastly, the XU range of MG mixers has an in built SPX range of digital effects ranging from reverbs to phasers and pitch shifting.

D-PRE Microphone Preamps

The MG20XU features newly refined D-PRE mic preamps that employ an inverted Darlington circuit design and deliver more power with lower impedance. Initially intended for use with Yamaha's high-end recording equipment, these discrete class-A preamps ensure your signal retains the original character and musical expression.

Studio-Quality Op-Amp

The head amp determines overall sound quality and the op-amp integrated circuits are one of the most important elements within the head amp circuit. All MG series mixers feature new, high-quality, custom-made MG01 op-amps that Yamaha have developed in cooperation with the semiconductor manufacturer. MG01 op-amps utilise redesigned circuitry in which even the internal components and wiring have been optimised to ensure exceptional resolution and transient responses.

1-Knob Compressors

The Yamaha MG20XU features newly upgraded 1-knob compressors indicators that allow you to visually monitor when compression ''kicks in'' on each channel. These intelligent compressors add optimally set compression to a wide variety of input sources by simply adjusting a single control - eliminating the need to set up and configure complex outboard equipment.

SPX Digital Effects

Suitable for musical and non-musical applications alike, the Yamaha MG mixer is equipped with integrated high-resolution effects that allow you to tailor the sound for each performance. Yamaha's acclaimed SPX processor delivers a comprehensive suite of 24 editable digital effects, perfect for enhancing your mix.

Cubase Al

MG series mixing consoles are supplied with a downloadable version of Steinburg's Cubase Al software. This comprehensive DAW suite provides you with a powerful and versatile platform for music production.

Features

• Studio-grade Discrete Class-A “D-PRE” Mic Preamps with an Inverted Darlington Circuit
• High quality sound Op-amp
• Switchable phantom power and PAD switch
• Professional 1-knob compressors with LED Indicators
• EQ and high-pass filters
• Wide range of input and output connetors
• LED level metering
• Built-in SPX digital effects
• Rugged, impact-resistant, powder-coated metal chassis
• Integrated rack-ears for easy rack mounting
• Universal power supply
• 24-bit/192kHz 2-in/2-out USB audio interface
• Includes Cubase Al software

Specifications

• Inputs: 20
• 12 x Mono Mic/Line
• 4 x Mono/Stereo Mic/Line
• Outputs:
• 2 x Stereo
• 1 x Monitor
• 1 x Headphone
• 4 x Aux Sends
• 4 x Group
• Phantom Power: 48V (Per Channel)
• Digital Connectivity: USB 2.0 (24-Bit/192kHz)
• Total Harmonic Distortion: 0.03 Percent
• Frequency Response: 20Hz - 20kHz, +0.5dB/-1.5dB
• Equivalent Input Noise: -128dB
• Residual Output Noise: -102dB
• Crosstalk: -78dB
• Power Requirements: 100V - 240V, 50Hz/60Hz
• Power Consumption: 36W
• Dimensions: 444mm x 130mm x 500mm (W x H x D)
• Weight: 7.1kg
