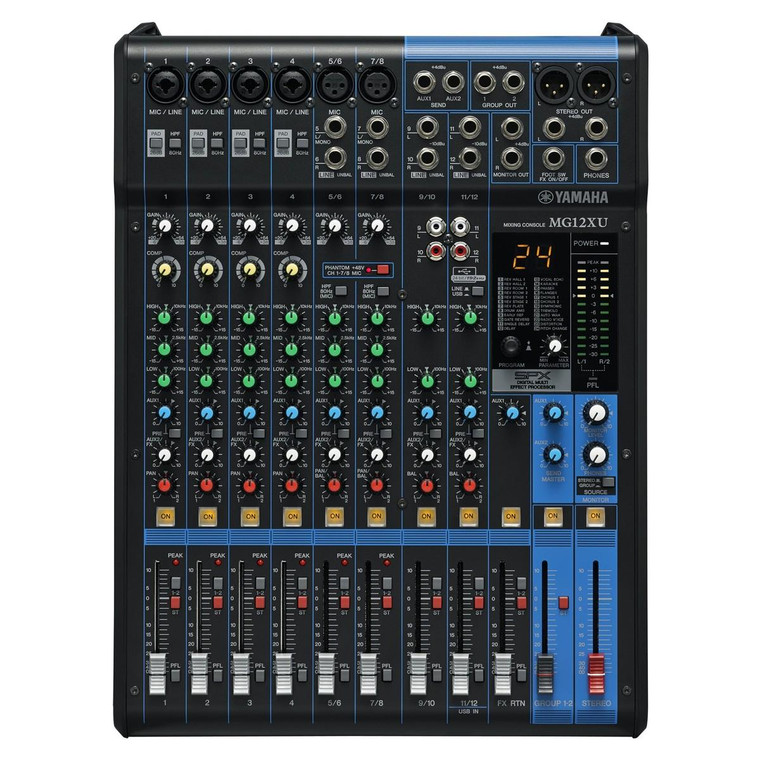

Yamaha MG12XU 12 Channel Analogue USB Mixer with Faders

The Yamaha MG12XU Analog USB Mixer provides superb quality preamps and all the control you need in a small and easy package. Small-format mixers don't have to compromise on sound quality. The class-A D-PRE preamps deliver sound reproduction with great clarity and detail. Get consistently great results every time with the MG12XU

Yamaha MG XU Mixers integrate smoothly with your digital world. An integrated 2-in/2-out USB interface, and bundled Cubase AI software mean you can easily connect to a computer or laptop and get great live recordings in seconds.

Whether you're making corrective tweaks or adding some creative flair to your mix, you can take advantage of Yamaha's SPX digital effects engine. A suite of 24 editable effects will be available to you in an easy to control format. Get the best from your sound no matter what you're mixing.

Features

• Discrete Class-A mic preamps
• High quality sound op-amp
• Switchable phantom power & PAD switch
• 1-knob compressors
• AUX input
• EQ & high-pass filters
• Variety of input & output connectors
• LED level metering
• Built-in SPX digital effects
• Metal chassis
• Includes Cubase AI downloadable software

Specifications

• On-Board Processors: SPX Algorithm: 24 Programs, Parametre Control: 1, Foot SW: 1 (FX RTN CH On/Off)
• Phantom Power: +48V
• Digital I/O: USB Audio Class 2.0 Compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-Bit
• Input Channels
  • Mono (Mic/Line): 4
  • Mono/Stereo (Mic/Line): 2
  • Stereo (Line): 2
• Output Channels
  • Stereo Out: 2
  • Monitor Out: 1
  • Phones: 1
  • AUX Send: 2
  • Group Out: 2
• Bus: Stereo: 1, Group: 2, AUX[Including FX]: 2
• Input Channel Function
  • PAD: 26 dB (Mono)
  • HPF: 80Hz, 12dB/oct (Mono)
  • COMP
    • 1-Knob Compressor Threshold: +22dBu to -8dBu
    • Ratio: 1:1 to 4:1
    • Output Level: 0 dB to 7 dB
    • Attack Time: Approx 25 msec
    • Release Time: Approx 300 msec
  • EQ High: (Mono) Gain: +15dB/-15dB, Frequency: 10kHz Shelving
  • EQ Mid: Gain: +15dB/-15dB, Frequency: 2.5kHz Peaking
  • EQ Low: (Mono) Gain: +15dB/-15dB, Frequency: 100Hz Shelving
  • Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
  • Level Metre: 2 x 12 -Segment LED Metre (Peak, +10, +6, 0, -6, -10, -20, -25, -30dB)
• Total Harmonic Distortion: 0.03% @ +14dBu, Gain Knob: Min, 0.005% @ +24dBu, Gain Knob: Min
• Frequency Response: +0.5dB/-1.5dB, Refer To Nominal Output Level
• Hum & Noise Level
  • Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150Ω, Gain Knob: Max)
  • Residual Output Noise: -102 dBu (Stereo Out, Stereo Level Knob: Min)
• Crosstalk: -78 dB
• Power Requirements: AC 100
• Power Consumption: 22W
• Dimensions
  • Height: 118 mm
  • Width: 308 mm
  • Depth: 422 mm
  • Net Weight: 4.2 kg
