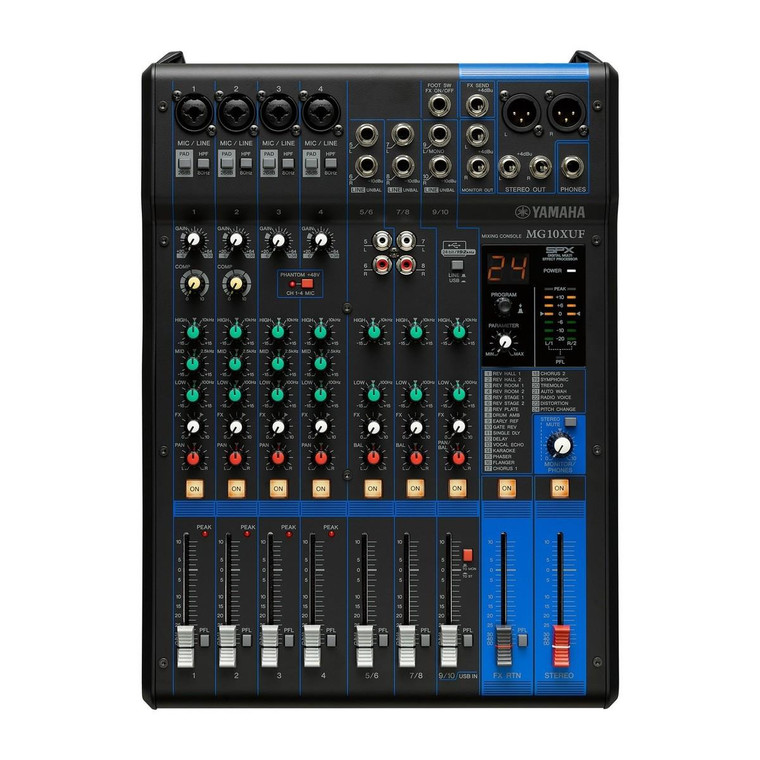

Yamaha MG10XUF 10 Channel Analogue USB Mixer with Faders

 The Yamaha MG10XUF Analog USB Mixer houses superb quality preamps and all the control you need in a small and easy package and proves that small scale mixers don't have to compromise on sound quality. The class-A D-PRE preamps deliver sound reproduction with great clarity and detail. Get great results every time. Building on the design of the MG10XU, the MG10XUF has channel and master faders letting you make precise adjustments to your levels in a familiar format.

Studio Grade Preamps

The preamp is the starting point when it comes to mixers and they are the most vital components for determining the quality of your mix. The mixers within the Yamaha MG series all feature a studio-grade class-A D-PRE preamp to deliver more power at a lower impedance. This premium preamp possesses an extremely wide frequency range and delivers a sound full of fat bass tones and incredibly smooth highs with little to no distortion. This pure platform allows you to get straight into the performance without needing to spend wasted time trying to 'fix' your mix.

MG01 Op-Amp

The sound quality is derived from the head amp, and one of the most important sections of the head amp is the op-amp. The Yamaha MG series mixers all have custom made MG01 amplifiers that focus on sound quality first and foremost. This integrated circuit is redesigned for optimal resolution.

PAD Switch

The mixing consoles within the MG series gives users outstanding control over the improved frequency response and sound quality of condenser microphones. The input channel with PAD switch allows MIC to line level of inputs and attenuates high input signals. Therefore, the mixer can avoid issues with clipping that can be so prevalent in affecting a mix.

Professional Sound

Overall, the MG series of mixers gives you the tools to succeed in creating high quality sound that features your own unique touch. With 1-knob compressors, users can alter the dynamics of an audio signal. This is incredibly useful when wanting to add more life to a guitar tone, heavier bass lines, tight snare sounds and crisper vocal performances. The intuitive Yamaha knob design ensures simple access for optimised compression settings.

Features

• Discrete Class-A mic preamps
• High quality sound op-amp
• Switchable phantom power & PAD switch
• 1-knob compressors
• AUX input
• EQ & high-pass filters
• Variety of input & output connectors
• LED level metering
• Built-in SPX digital effects
• Metal chassis
• Includes Cubase AI downloadable software

Specifications

• Input Channels
  • Mono: 4 x Mic/Line
  • Stereo: 3 x Line
• Output Channels
  • Stereo Out: 2
  • Monitor Out: 1
  • Headphone Output: 1
  • AUX Send: 1
• Bus:
  • 1 x Stereo
  • 1 x Aux (FX)
• On-Board Effects: 24 x SPX Algorithms Effects
• Phantom Power: +48V
• USB Interface: USB 2.0, 24-Bit/192kHz
• PAD: 26dB (Mono)
• HPF: 80Hz, 12dB/oct (Mono)
• Compressor
  • Threshold: +22dBu to -8dBu
  • Ratio: 1:1 to 4:1
  • Output Level: 0dB to 7dB
  • Attack Time: Approx. 25msec
  • Release Time: Approx. 300msec
• EQ:
  • High: 10kHz Shelving (+15dB/-15dB Gain)
  • Mid: 2.5kHz Peaking (+15dB/-15dB Gain)
  • Low: 100Hz Shelving (+15dB/-15dB Gain)
• Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
• Level Metre: 2 x 7-Segment LED Metre (Peak, +10dB, +6dB, 0dB, -6dB, -10dB, -20dB)
• Crosstalk: -83 dB
• Power Requirements: PA-10 (AC 38 VCT, 0.62A, Cable Length = 3.6m)
• Power Consumption: 22.9W
• Dimensions
  • Height: 110mm
  • Width: 275mm
  • Depth: 390mm
• Weight: 2.1kg
