Sold with a 7 YEAR Return to Base Warranty from YAMAHA

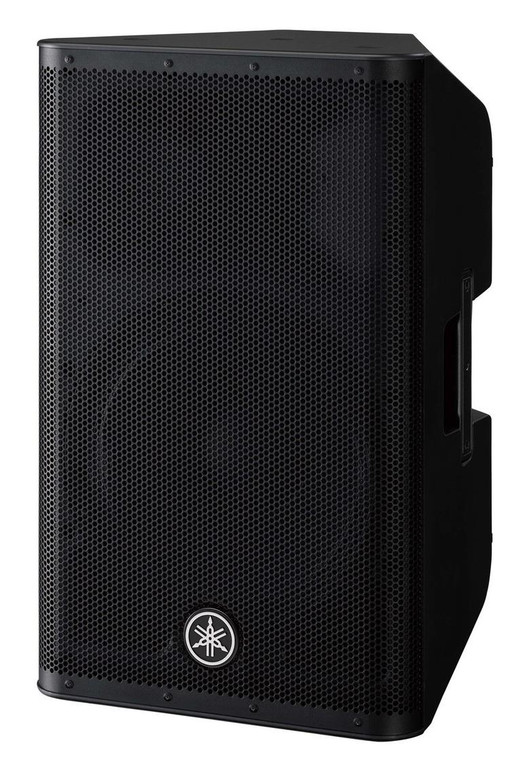

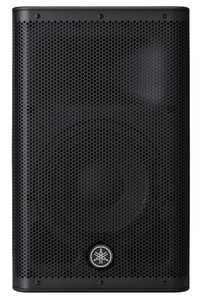

The Yamaha DXR15mkII stands out with its high-efficiency 1100W Class-D amplifier, achieving up to 134dB SPL. This power, combined with precise digital signal processing, allows the speaker to maintain high-definition sound quality at extremely high volumes, perfect for live performances where clarity and volume are paramount.
Advanced driver for detailed audio reproduction
This model is equipped with a 1.75” Neodymium HF compression driver, ensuring detailed and clear audio across all frequencies. The wide dispersion constant directivity horn enhances this clarity, distributing sound evenly to prevent deterioration at different angles, making every seat the best seat in the house.
Built for demanding environments
Encased in a durable, compact ABS enclosure, the DXR15mkII is built to withstand the rigors of road use while maintaining portability. Its design includes heavy-duty steel grilles and ergonomic handles, making it easy to transport and set up, ideal for venues that vary from night to night.
Flexible audio control
The integrated three-channel mixer provides extensive flexibility, allowing connections from microphones, instruments, and other line sources. Features like the flexible HPF control and smart mixing/linking capabilities enable easy integration with other speakers and sound systems, ensuring optimal performance regardless of the audio environment.
Optimised for installation and versatility
The DXR15mkII includes dual-angle pole mount sockets and multiple rigging points, supporting various setup configurations. Whether used on a pole, as a floor monitor, or rigged with optional brackets, this speaker adapts to any space, delivering sound exactly where it's needed. This adaptability, paired with its powerful output and clear audio reproduction, makes it an invaluable tool for any sound professional.
Features
- Register your product with Yamaha and receive an extended 7-year warranty
- D-contour intelligent multi-band compressor optimises your sound
- FIR-X tuning crossover stops phase issues in the mid-range
- 50° monitor angle when laid on the side
- Two 35 mm speaker pole mounts at 0° and 7°
- Super-efficient class D amplification with 700 watts continuous output
- Integrated 3 channel mixer lets you easily balance input sources
- Easy to use presets for different rooms and PA configurations
Specifications
General
- System type: 2 way, bi-amped, bass reflex powered speaker
- Frequency range (-10 dB): 49 Hz - 20 kHz
- Coverage angle: H 90° x V 60° constant directivity horn
- Crossover type: FIR-X tuning (linear phase FIR filter)
- Max SPL (peak): 134 dB SPL
Transducers
- Low frequency:
- Diameter: 15'' cone
- Voice coil: 2.5''
- Magnet: Ferrite
- High frequency:
- Voice coil: 1.75''
- Diaphragm: PET
- Type: 1'' throat compression driver
- Magnet: Neodymium
Enclosure
- Material, finish, colour: ABS, matte black
- Floor monitor angle: 50° Symmetrical
- Dimensions (WxHxD): 445 x 700 x 380 mm
- Net weight: 21.8 kg
- Pole socket: 35 mm x 2 (0° or 7°)
- Rigging points: Top x 2, Rear x 1, fits for M10 eyebolts
Amplifier
- Amplifier type: Class-D
- Dynamic power rating: 1100 watts
- Continuous power rating: 700 watts
- Cooling: fan cooling, 4 speeds
- AD/DA: 24 bit, 48 kHz
- Signal processing: 48 bit
- HPF/LPF: off, 100, 120 Hz 24 dB/octave
- DSP presets: D-contour, FOH/main, monitor, off
- Input connectors: 1 x XLR/1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
- Output connectors: 2 x XLR
- Idle power consumption: 35 watts
