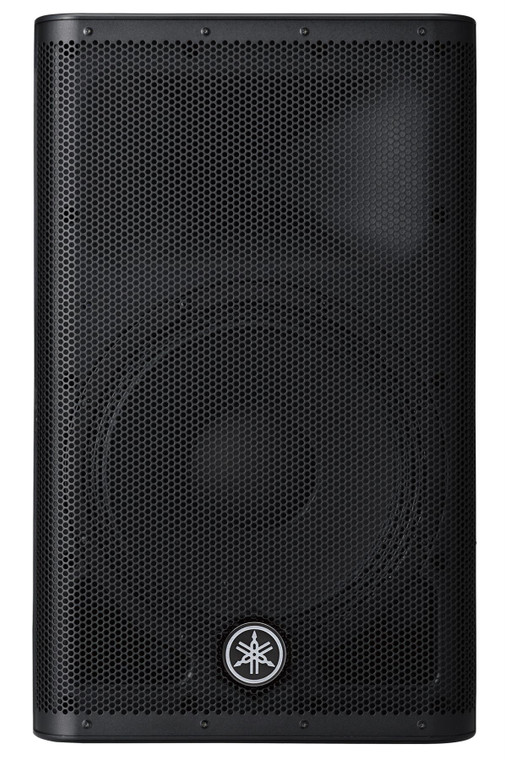

The DXR12mkII is 1100 Watts of audio fidelity. Picking up where the initial DXR series left off, the mkII goes even further. Packed with innovative DSP and features, from a built-in mixer to an intelligent multi-band compressor. The DXR12mkII does everything it can to ensure you're always sounding your best. Topped off with a versatile range of mounting options. And a durable yet compact ABS enclosure. The DXR12mkII is a PA speaker that is as powerful as it is precise.
Raw power
With a 1100 Watt Class-D amplified design, the Yamaha DXR12mkII 12'' Active PA Speaker is powerful enough for any live environment. An intelligent multi-band compressor calculates level-based EQ adjustments. Ensuring consistent clarity. And with the ability to handle obscene sound pressure levels, you can be confident that the DXR12mkII won't be bested.
Fine-tuned
The DXR12mkII is clever enough to give you the best sound possible. Yamaha's innovative FIR-X Tuning intelligently manages frequencies. Combatting phase cancellation, ensuring clarity, and with exceptionally smooth crossover. Meaning you'll always sound exceptional.
Mixed in
Getting a great sound couldn't be easier, thanks to the integrated 3-channel mixer. Each channel has its own volume control to balance your sources. Once you've got a great balance, the sound output can be adjusted to different spaces and applications, with easy contouring preset switches.
Versatile design
You can use the DXR12mkII in a variety of configurations. For floor monitoring applications, a 50° angle is integrated into the cabinet design for easy placement. Two 35 mm speaker pole mounts let you mount the speaker at an angle of either 0°, or 7°.
Features
- Register your product with Yamaha and receive an extended 7 year warranty
- D-contour intelligent multi-band compressor optimises your sound
- FIR-X tuning crossover stops phase issues in the mid-range
- 50° monitor angle when laid on the side
- Two 35 mm speaker pole mounts at 0° and 7°
- Super efficient class D amplification with 700 watts continuous output
- Integrated 3 channel mixer lets you easily balance input sources
- Easy to use presets for different rooms and PA configurations
Specifications
General
- System type: 2 way, bi-amped, bass reflex powered speaker
- Frequency range (-10 dB): 52 Hz - 20 kHz
- Coverage angle: H 90° x V 60° constant directivity horn
- Crossover type: FIR-X tuning (linear phase FIR filter)
- Max SPL (peak): 134 dB SPL
Transducers
- Low frequency:
- Diameter: 12'' cone
- Voice coil: 2.5''
- Magnet: Ferrite
- High frequency:
- Voice coil: 1.75''
- Diaphragm: PET
- Type: 1'' throat compression driver
- Magnet: Neodymium
Enclosure
- Material, finish, colour: ABS, matte black
- Floor monitor angle: 50° Symmetrical
- Dimensions (WxHxD): 362 x 601 x 350 mm
- Net weight: 18.6 kg
- Pole socket: 35 mm x 2 (0° or 7°)
- Rigging points: Top x 2, Rear x 1, fits for M10 eyebolts
Amplifier
- Amplifier type: Class-D
- Dynamic power rating: 1100 watts
- Continuous power rating: 700 watts
- Cooling: fan cooling, 4 speeds
- AD/DA: 24 bit, 48 kHz
- Signal processing: 48 bit
- HPF/LPF: off, 100, 120 Hz 24 dB/octave
- DSP presets: D-contour, FOH/main, monitor, off
- Input connectors: 1 x XLR/1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
- Output connectors: 2 x XLR
- Idle power consumption: 35 watts
