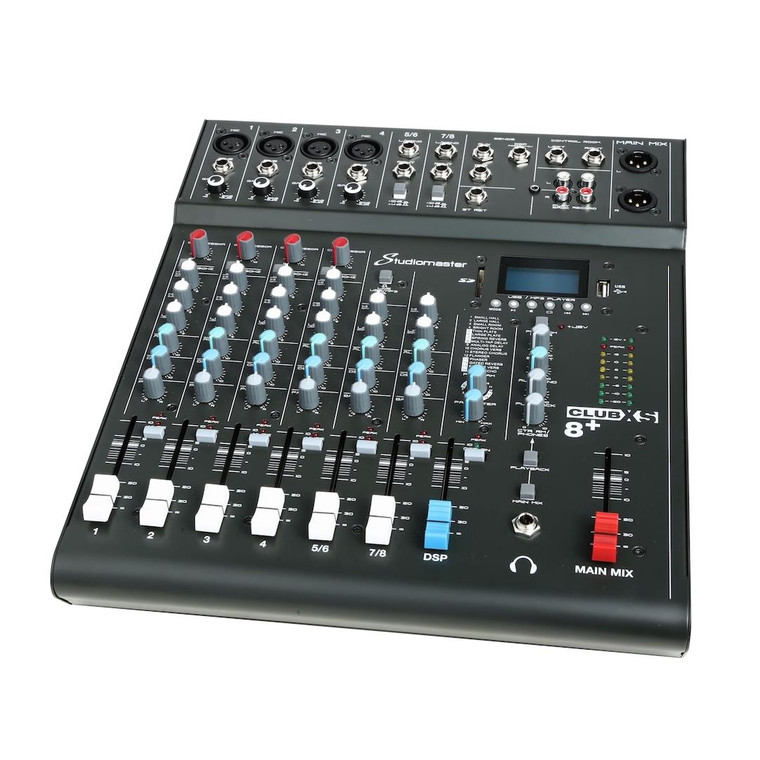

Studiomaster Club XS 8+ Compact 8 Channel Mixer with 16 DSP Effects & Bluetooth

The Studiomaster Club XS 8+ is a compact and extremely portable 8-track mixing console. From home studio recording sessions to live performances, this mixer is a simple, easy to use desk with all the necessities required to put a great mix together.

The Club XS-8+ features 8 inputs, 4 mic channels and 2 stereo channels, ensuring that your connectivity bases are fully covered. 16 onboard DSP effects provide a huge number of options that enable you to refine your sound, and a new footswitch socket gives you even more control (footswitch sold separately).

Each input channel features a 3 band EQ, 2 Auxiliaries, balanced mic/line connectors, compressor control and a channel mute switch. Stereo channels only feature a 2 band EQ and no compressor. Main outputs are balanced XLR, with additional jack outputs available for auxiliaries and control room, and RCA phono record/playback facilities. as well as Bluetooth connectivity - for connecting your smartphone or tablet - and a built-in USB/SD media player.

Features

• Handy footswitch socket
• Built-in USB/SD media player
• Bluetooth functionality
• 16 DSP effects
• 2 stereo channels, 4 mic channels, 8 inputs

Specifications

• Inputs: 8
• Mic Inputs: 4
• Stereo Inputs: 2
• Mic Gain Range: 6dB to 50dB
• Line Gain Range: 10dB to 34dB
• EIN:  -100dB
• Frequency Response: 10Hz – 20kHz (+1/-3dB)
• THD Mic Channel: <0.1%
• Signal to Noise Ratio: 80dB
• Output Levels: Max +26dB (Bal), +20dB (unBal)
• EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
• USB/SD: MP3 Audio playback
• Record: To USB drive or SD card (128kbps mono)
• DSP Effects: 16 DSP effects
• Power Requirements: 100V – 240V ~
• Dimension (W x H x D): 305 x 80 x 365 (mm)
• Weight: 4.5kg
