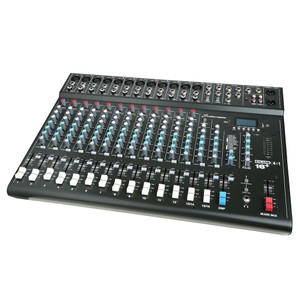

Studiomaster Club XS 10+ Compact 10 Channel Mixer with 16 DSP Effects & Bluetooth

Studiomaster’s ClubXS10+ 10 Channel Mixer possesses the same features as the highly regarded standard ClubXS10, but offers a few nifty new ones too, such as a DSP On/Off footswitch socket, redesigned control knobs and a slick new chassis.

This ultra-compact mixer features 10 inputs (6 mic channels and 2 stereo channels), Bluetooth connectivity, 16 on-board DSP effects and benefits from USB/SD card media player with playback and recording functionality. There's a 3 band EQ, 2 auxiliaries, balanced mic/line connectors and compressor control. All mic and line input channels feature their own mute switch and both stereo channels have a 2 band EQ with 2 auxiliaries. There are also balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback.

Thanks to its high-performance standard and ultra-compact lightweight format, the ClubXS10+ is a brilliant and affordable mixer perfect for live performance and home recording.

Features

• 10 inputs: 6 mic channels, 2 stereo channels
• 3 Auxiliary busses for monitoring and internal/external effects processing
• Professional balanced outputs
• High quality microphone preamps with enhanced compression and gain controls and 3 band EQ on all microphone channels
• 60mm smooth faders
• Mute control on every channel
• 16 in built DSP effects
• Foot switch socket for DSP on/off control
• Bluetooth playback connectivity
• USB/SD media player and recorder
• Internal power supply

Specifications

• Inputs: 10
• Mic Inputs: 6
• Stereo Inputs: 2
• Mic Gain Range: 6dB to 50dB
• Line Gain Range: 10dB to 34dB
• EIN:  -100dB
• Frequency Response: 10Hz – 20kHz (+1/-3dB)
• THD Mic Channel: <0.1%
• Signal to Noise Ratio: 80dB
• Output Levels: Max +26dB (Bal), +20dB (unBal)
• EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
• USB/SD: MP3 Audio playback
• Record: To USB drive or SD card (128kbps mono)
• DSP Effects: 16 DSP effects
• Power Requirements: 100V – 240V ~
• Dimension W*H*D: 360 x 80 x 365 (mm)
