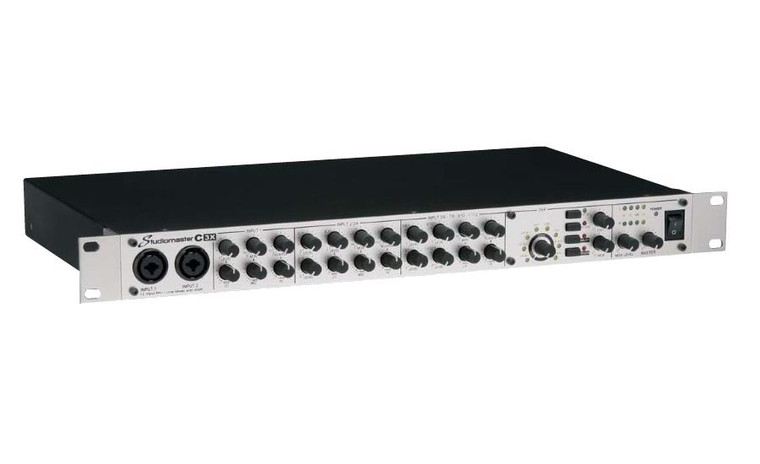

Studiomaster C3X 12 Channel 1U Professional Rackmount Mixer With DSP

The C3X features four balanced combination XLR and Jack inputs allowing for the connection of microphones and line-level equipment, for added flexibility 2 of the mic inputs are on the front panel and 2 on the rear.

All the mic pre-amps boast a studio-grade design, making the C3X mixer ideal for all microphones including condenser mics as phantom power is available. Not only this, but all mic channels also feature Studiomaster's 3-band EQ design, providing you with maximum control across the crucial vocal range.

The C3X model provides you with Studiomaster's latest generation of DSP effects, crystal clear, quality delays, reverbs and more. Three vocal settings are available along with room and plate reverbs. The delay mode is fully variable giving you an echo from 10ms up to 720ms, along with a regen range of 0% to 90%, so you can control the fade time. The DSP can be switched on and off with the front panel button or with an optional footswitch.

There are four stereo inputs offering a selection of Jack and RCA/Phono connections making the C3X perfect for most playback formats including CD, MP3 Players, laptops & smartphones. Each stereo input has an individual level control and shared 2-band EQ that gives an extra dimension.

The stereo outputs are on balanced XLR and RCA/Phono connections and feature LED metering on the front panel, so you can see exactly what is going on.

Housed in a 1U rack chassis, the C3X can be rack-mounted into a 19" cabinet or flight case.

Features

• 12 Inputs
• 3 Band dedicated EQ for channel 1
• 3 Band shared EQ for channels 2/3/4
• 2 Band shared EQ for 4 Stereo Channels
• 2 Aux Sends
• Balanced Inputs and Outputs
• Custom DSP included

Specifications

• Inputs: 12
• Mic Inputs: 4
• Stereo Inputs: 4
• Frequency Response: 22Hz – 40kHz (+/-0.5dB)
• Distortion: THD @ 1kHz 0.008%
• Residual Noise: -93dBu
• Dynamic Range: >105dBu
• Metering: Peak reading 4 segment 2 colour LED bar graphs
• Mic EQ: Hi, Mid, Lo
• Line EQ: Hi, Lo
• Maximum Output Levels: XLR+23dBu, RCA+17dBu, Aux&Mon+23dBu
• Power Requirements: 115-240V ~ 50/60Hz 52-104mA max
• Dimension W*H*D: 482 x 44 x 265 (mm)
• Weight Net/Shipping: 3.7kg / 4.7kg
