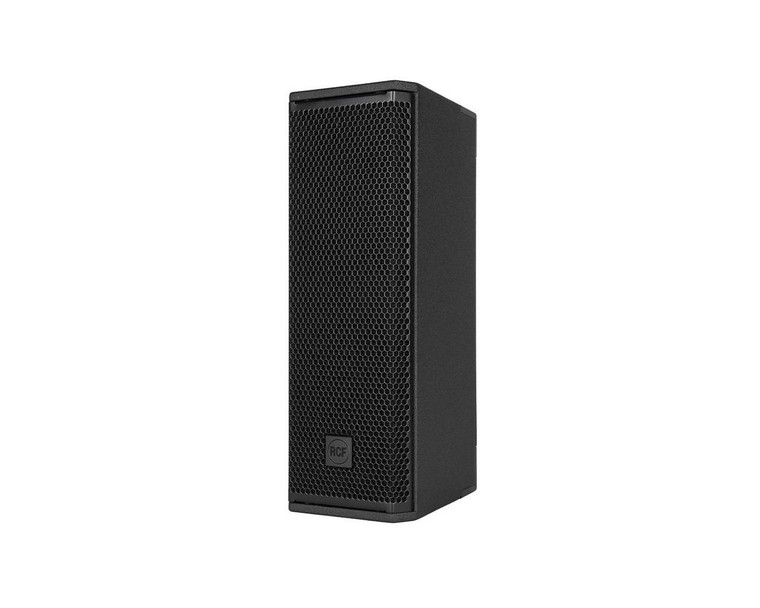

RCF NXL 14-A Two-Way Active Speaker System 2 x 6" + 1.75" v.c., 1050Wrms, 2100W peak

The NXL 14-A is the smallest active speaker in the professional NXL series. It includes two 6” woofers in a symmetrical arrangement and a 1.75” Precision Transducers PKX driver mounted on a rotatable TRW waveguide, powered by a 2,100W two-channel amplifier. Available in black or white finish, the NXL 14-A provides clear audio, high power, and portability for live applications. Suitable for vocal reproduction, it can be used in compact live systems with SUB Series subwoofers, immersive setups, or as a fill speaker.

Features

• 128 dB max SPL
• 2100W Class-D Bi-Amplification
• 70-20000 Hz linear frequency range
• 75" PKX / Neodymium Compression Driver
• 2 x 6" High Power Neodymium Woofers
• Rotatable 100° x 70° TRW Waveguide
• FiRPHASE and Bass Motion Control

Specifications

• Acoustical specifications
  • Frequency Response:  70 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  128 dB
  • Horizontal coverage angle:  100°
  • Vertical coverage angle:  70°
• Transducers
  • Compression Driver:  1 x 1.0'' neo, 1.75'' v.c
  • Woofer:  2 x 6.0'' neo, 2.0'' v.c
• Input/Output section
  • Input signal:  bal/unbal
  • Input connectors:  Combo XLR/Jack
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu
• Processor section
  • Crossover Frequencies 1200
  • Protections:  Excurs.
  • Limiter:  Fast Limiter
  • Controls:  Linear/Boost/Stage Presets, Volume.
• Power section
  • Total Power:  2100 W Peak
  • High frequencies:  700 W Peak
  • Low frequencies:  1400 W Peak
  • Cooling:  Convection
  • Connections:  Powercon TRUE1 TOP IN/OUT
• Standard compliance Safety agency:  CE compliant
• Cabinet/Case Material:  Plywood
• Hardware
  • 2 X M10 TOP AND BOTTOM
  • 2 X PIN D.10
  • Handles: 2 TOP AND BOTTOM
  • Grille:  Steel
  • Colour:  Black - RAL 9005
• Physical & Dimensions
  • Height:  567 mm / 22.32 inches
  • Width:  197 mm / 7.76 inches
  • Depth:  270 mm / 10.63 inches
  • Weight:  12.8 kg / 28.22 lbs
