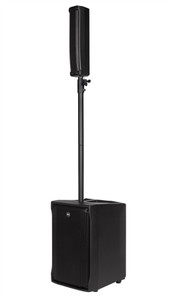

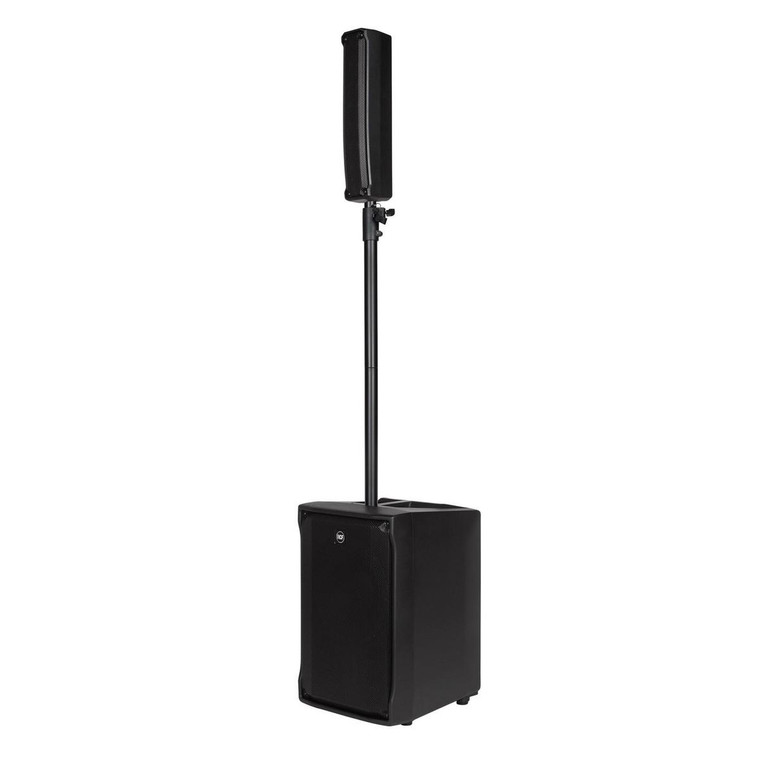

RCF Evox JMIX8 Active Powered 1400W Two-Way Array Column PA with Digital Mixer

Everything you need. Right where you need it. The EVOX JMIX8 features an integrated mixer with eight high-performance channels. Enhance your sound with dynamic compressors, 7-band graphic EQ, and wide-range of effects from the Z Core DSP. Each feature allows you to fine tune your sound for ultimate impact. That’s audio that’s sure to get you noticed. Plug your guitar directly into the mixer without the need for an amp. The JMIX8 offers realistic cabinet emulations for realistic tone without the hassle. Control your mixer, wherever you are. The downloadable iOS/Android app lets you mix your sound from your smartphone. You can even make adjustments whilst playing.

Ultra-portable design

Take your talent anywhere. The RCF EVOX JMIX8 has an ultra-portable and compact design, providing unrivalled ease of transportation. The satellite speaker fits neatly into the back of the sub unit, allowing for seamless integration. That means less time untangling cables, and more time performing to your fans. Set up in record time with the adjustable pole mount. And when you’re ready to hit the road, just extend the handle, and wheel your PA without strain or struggle.

Superb sound quality

Articulate highs. Deep lows. And enough midrange to turn heads. The EVOX JMIX8 offers superb sound quality with fully responsive audio - even at high volume. Each full-range RFC driver is capable of handling high SPL and power. The high excursion RCF woofer provides enough punch to shake a dancefloor, whilst the bass-reflex port design reduces distortion. Thanks to the 1400W on-board amps, the EVOX J8 offers huge sound with high efficiency. That means ultra-fast attack, realistic transient response, and superb audio performance. This is live sound reinvented.

FiRPHASE filtering technology

The next generation in digital processing. The EVOX JMIX8 is designed using FiRPHASE, delivering transparent sound, clarity, and perfect stereo images to the listener. This bespoke filtering technology provides the best sound possible, optimising dynamics, amplitude, and phase patterns. By taking accurate measurements of the loudspeaker phase, the FiRPHASE algorithm adapts the loudspeaker without touching the amplitude equalisation. In short, you’ll get accurate sound at any volume.

Features

• High performance audio with 1400W two-way peak power
• Articulate and punchy sound with 128 dB peak SPL
• Fully responsive audio from a class-D amplifier
• Deep, rounded bass from a 12" woofer with a 2.5” voice coil
• Enough channels for every band member – eight input digital mixer
• Immersive tonal sculpting with 7-band graphic EQ
• Add depth and texture to your sound with a range of built-in effects
• Perfect for guitarists with realistic amp and cabinet emulation
• Take your audio to the next level with 6 compressor presets
• Dynamic sound imaging from 8 x 2" ultra-compact full-range drivers with a 1” voice coil
• Innovative DSP processing with FIRPHASE
• Full tonal sculpting with a switchable EQ mode presets for playback or live
• Switch between mic and line for crisp, clear audio
• Pole mountable, easy set-up
• Quick to manoeuvre with extendable handles and high-performance wheels
• Ideal for live sound, clubs, DJs, corporate events, and AV presentations
• USB and Bluetooth audio compatibility for playback

Specifications

• Power Supply Requirements: 220-240V
• Frequency Response: 40Hz – 20kHz
• Max SPL: 128dB
• Horizontal Coverage Angle: 120 degrees
• Vertical Coverage Angle: 30 degrees
• Dimensions: 2350 x 350 x 450mm
• Weight: 23.8kg

Input/Output

• Inputs: XLR, jack
• Outputs: XLR
• Mic: 4
• Phantom Power +48V: Yes
• Mono Line: 4
• Stereo Line: 2
• AUX Send Outputs: 1
• AUX Outputs: 1

Processor Section

• Crossover Frequencies: 220Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Volume, Boost, Mic/Line

Processing

• Processing Channels: 8
• Signal Processing: 32-bit floating point
• AD/DA Conversion: 24-bit @ 48kHz
• Dynamic Range: 108dB

Internal Effects

• Send Effects: 1
• MULTIFX Insert Effects: 1
• Main Out Processors: 1
