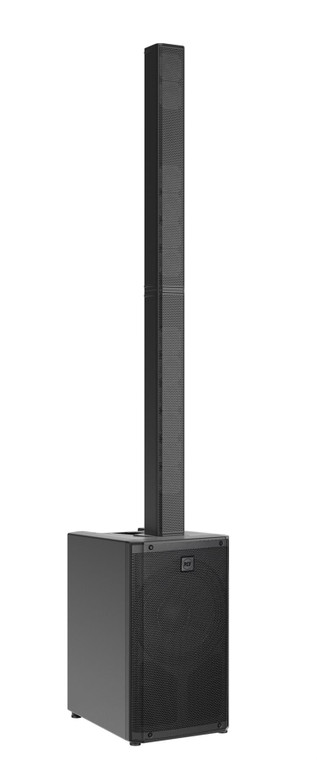

RCF Evox J11 Active Three-Way Portable Array 12" + 12 x 3" + 1.75" v.c. 3,500W Peak

The EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

Features

• 132 dB Max SPL
• 3500 W Class-D Amplifier - Built-In DSP
• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 12 × 3” Full-Range Neo Transducers
• 12” RCF Precision Low-Frequency Woofer
• Enhanced Coverage And Clarity
• Composite Cabinet With Aluminum Stand Mount
• Sleek, Road-Ready Design
• Top Speaker Padded Carrying Bag Included
• PowerCON TRUE1-TOP Mains Connector

Acoustical Specifications

• Frequency Response: 37 Hz - 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 40°

Transducers

• Compression Driver: 1 x 0.75'' neo, 1.75'' v.c
• Fullrange: 12 x 3.0'' neo, 1.0'' v.c
• Woofer: 1 x 12'', 2.5'' v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: +4 dBu

Processor Section

• Crossover Frequencies: 160 Hz/1800 Hz
• Protections Thermal, RMS
• Limiter Soft: Limiter
• Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE

Power Section

• Total Power: 3500 W Peak
• High frequencies: 1500 W Peak
• Low frequencies: 2000 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: PP Composite
• Handles: 1 Top
• Pole mount/Cap: Quick-fit socket
• Grille: Steel
• Colour: Black

Size / Weight

• Height: 2285 mm / 89.96 inches
• Width: 400 mm / 15.75 inches
• Depth: 460 mm / 18.11 inches
• Weight: 29 kg / 63.93 lbs
