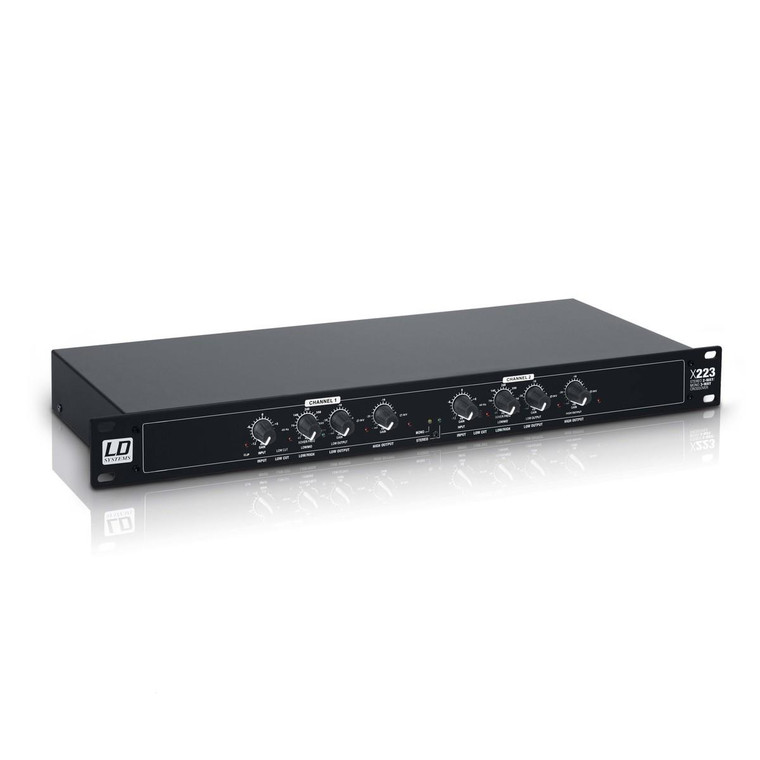

LD Systems X223 Active Crossover 2 Way Stereo / 3 Way Mono 1U Rack Mount

The LD Systems X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U rack format. Its rugged construction, high quality, and robust knobs as well as the integrated power unit are rarities in this price range.

It provides a mono sub output, an adjustable crossover frequency for each channel, adjustable LF/HF and input gains, phase reverse controls, switchable 40 Hz High-Pass filters and symmetrical XLR In- and Outputs.

With the LD Systems X223 you get a crossover fulfilling the professional standards and offering great quality and sound characteristics.

Features

• Conveniently mounts into a standard 19'' rack
• Can be operated in mono or stereo modes
• 93 dB signal to noise ratio
• < -80 dB crosstalk
• Versatile dynamic range of 106 dB

Specifications

• Product type: Signal Processors
• Type: 2-way stereo/3-way mono
• Frequency response: 20 - 20,000 Hz
• Dynamic range: 106 dB
• Signal-to-noise ratio: > 93 dB
• THD: Crosstalk: Max. input level: +21 (balanced or unbalanced) dBu
• Max. output level: +21 (balanced or unbalanced) dBu
• Input impedance (kOhms): 50000 kOhm
• Output impedance: 200 Ohm(s)
• Controls: 2 x crossover frequency low/high , 2 x crossover low/mid , 2 x high gain , 2 x highpass (40 Hz) , 2 x input gain , 2 x low gain , 2x frequency switch x1/x10 , 4 x inv switch , LF sum ,Mono/stereo mode
• Indicators: 2 x clip, 2 x crossover x 10, 2 x highpass, 4 x inv. , mono, stereo
• Line inputs: 2
• Line input connectors: XLR
• Line outputs: 4
• Line output connectors: XLR
• Mains connector: IEC socket
• Operating voltage: 220 V AC - 240 V AC
• Width: 482 mm
• Height: 44.5 mm
• Depth: 153 mm
• Weight: 2.6 kg
