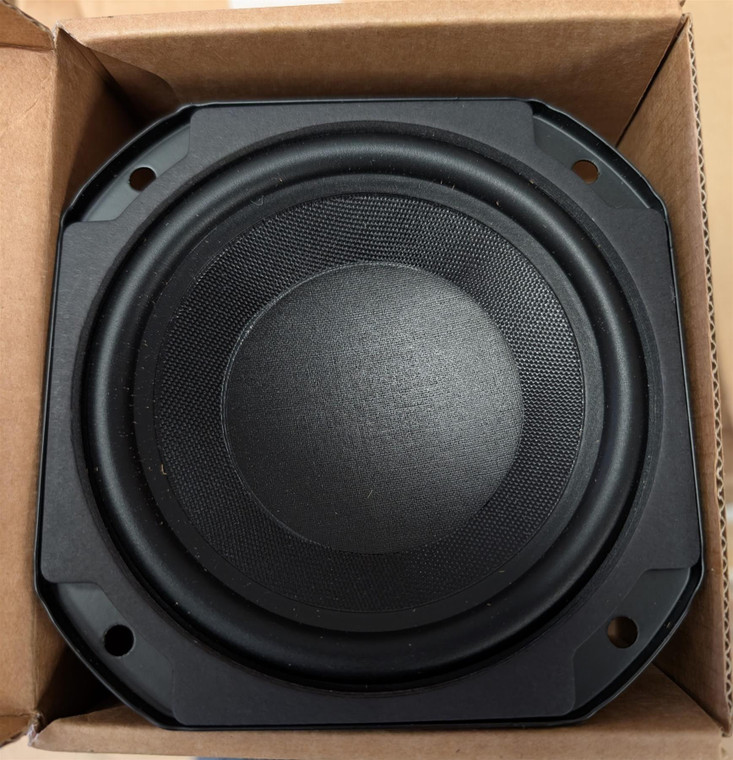

Faital Pro 5FE120 - 5" 80W 8 Ohm Loudspeaker
£24.99
Nominal Specifications
- Nominal Diameter - 130 mm (5 in)
- Overall Diameter - 144.8/124.5 mm (5.7/4.9 in)
- Bolt Circle Diameter - 133 mm (5.24 in)
- Baffle Cutout Diameter - 114 mm (4.49 in)
- Depth - 71.5 mm (2.81 in)
- Flange and Gasket Thickness - 6.5 mm (0.25 in)
- Net Weight - 1.13 Kg (2.5 lb)
Technical specifications
- Nominal Diameter: 130 mm (5in)
- Overall Diameter: 144.8/124.5 mm (5.7/4.9in)
- Bolt Circle Diameter: 133 mm (5.24in)
- Baffle Cutout Diameter: 114 mm (4.49in)
- Overall Depth: 71.5 mm (2.81in)
- Flange/Gasket Thickness: 6.5 mm (0.25in)
- Impedance: 8 ohm
- AES Power: 80 W
- Program Power: 160 W
- Sensitivity: 88 dB
- Frequency Range: 63:6300 Hz
- Voice Coil Diameter: 32 mm (1.26in)
- Voice Coil Material: Cu
- Voice Coil Former: Kapton
- Voice Coil Depth: 12.5 mm (0.49in)
- Magnetic Gap Depth: 6 mm (0.24in)
- Surround Type: Half
- Spider Profile: 1x constant height waves
- Chassis Material: Steel
- Magnet Material: Ferrite Ring
- Demodulating Ring: Aluminum Ring
- Flux Density: 1 T
- Driver Displacement Volume: 0.3 L (0.011ft^3)
