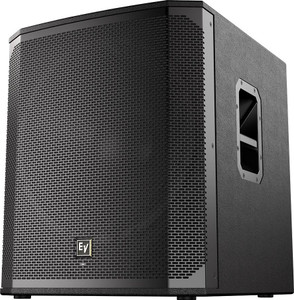

Electro-Voice ETX-18SP 18" Active PA Subwoofer

Designed for discerning audiophiles, the ETX-18SP delivers a highly linear response across an extended frequency range, enabling powerful low-frequency reproduction from its 18” woofer. This ensures exceptional bass performance and maintains audio clarity even at maximum sound pressure levels of 135dB.

The system offers consistent coverage throughout the audience area. Its patented waveguide provides uniform bandwidth response and ultra-wide dispersion, ensuring detailed sound is experienced from all locations—front, sides, or back. Positioned at the front of the enclosure, the waveguide reduces latency correction, contributing to reliable and smooth audio in every application. The ETX-18SP sets a new standard for live sound reinforcement.

Installation and operation are straightforward with the integrated DSP, which includes presets for various speaker applications, crossover frequencies, and top/sub configurations. Boundary compensation filters enable consistent sonic performance whether the unit is deployed as a floor monitor, on a tripod, or in a suspended setup. Further sound customization is available through adjustable delay, a three-band EQ, and advanced high-crossover points, offering control options not commonly found in comparable loudspeakers.

Features

• High performance subwoofer, perfect for professional applications
• Packs a punch with 1800W peak power handling
• Highly sensitive 18” low frequency transducer for ultra-defined bass
• Compact, powerful, and efficient class-D amplification
• Pristine sound at high volumes with a maximum 135dB peak SPL
• Ultra-wide dispersion thanks to Signal Synchronised Transducers waveguide design
• Best-in-class processing and control with the integrated FIR-Drive DSP
• Special DSP preset for true cardioid performance across the full operating bandwidth
• Easy to use LCD display with rotary knob on the back of your speaker
• Solid ply-birch enclosure ensures minimal resonance for articulate sound
• Rugged construction with a scratch and scuff resistant coating
• Easy to mount with integrated pole receptacles
• Transport with ease thanks to the ergonomic carry handles
• Ideal for live sound and installation applications

Specifications

• Frequency Response (-3 dB): 33Hz – 150Hz
• Frequency Range (-10 dB): 28Hz – 180Hz
• Maximum SPL 1m: 135 dB Peak
• Power Rating: 1800W
• LF Transducer: DVX3180A 457mm (10”)
• HF Transducer: DH3-B 1.25'' Titanium Compression Driver
• Low Pass Frequency: Adjustable 80Hz, 100Hz, 120Hz, 150Hz
• Connectors: 2 x XLR/TRS Combo Jack & 2 x XLR Link Output
• Enclosure Material: 18mm, 13-Ply Birch Plywood with EV Coat
• Grille: 16AWG Steel with Powder coat
• Suspension: 8 x M10 Suspension Points
• Power Consumption: 1.6 to 0.8 A
• Weight: 51.8 kg
• Dimensions
  • Height: 550 mm
  • Width: 675 mm
  • Depth: 910 mm
