Sold with a 36 MONTH Return to Base Warranty from ELECTRO-VOICE

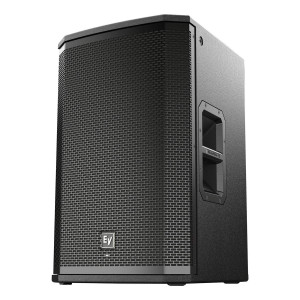

The ETX-15P is designed for users seeking accurate sound reproduction, offering a linear response across a wide frequency range. It features a 15” woofer for low frequencies and a 1.25” compression driver that extends to 20kHz, delivering sound at maximum SPLs of 135dB.
The speaker provides consistent coverage throughout the audience area. Its patented waveguide ensures uniform bandwidth response with ultra-wide dispersion. Positioned at the front of the enclosure, the waveguide aims to minimize latency correction, supporting smooth performance in various situations.
The system DSP includes built-in presets for straightforward setup, covering speaker application modes, crossover settings, and top/subwoofer combinations. Boundary compensation filters are incorporated so the ETX-15P can function similarly as a floor monitor, on a tripod, or when suspended. Additional features include adjustable delay, a 3-band EQ, and high-crossover points.
Features
- High performance loudspeaker, perfect for professional applications
- Packs a punch with 2000W peak power handling
- Highly sensitive transducers for ultra-clear sound
- Impactful bass from a 15” LF SMX woofer
- Pristine high end from a 1.25” titanium compression driver
- Compact, powerful, and efficient class-D amplification
- Pristine sound at high volumes with a maximum 135dB peak SPL
- Ultra-wide dispersion thanks to Signal Synchronised Transducers waveguide design
- Best-in-class processing and control with the integrated FIR-Drive DSP
- Easy to use LCD display with rotary knob on the back of your speaker
- Solid ply-birch enclosure ensures minimal resonance for articulate sound
- Rugged construction with a scratch and scuff resistant coating
- Easy to mount with integrated pole receptacles
- Transport with ease thanks to the ergonomic carry handles
- Ideal for live sound and installation applications
Specifications
- Frequency Response (-3 dB): 48Hz – 20 kHz
- Frequency Range (-10 dB): 40Hz – 20 kHz
- Maximum SPL 1m: 136 dB Peak
- Coverage (H x V): 90° x 60°
- Power Rating: 2000W
- LF Transducer: SMX2150 380mm (10”)
- HF Transducer: DH3-B 1.25'' Titanium Compression Driver
- Crossover Frequency: 1500Hz
- Connectors: 2 x XLR/TRS Combo Jack & 1 x XLR Link Output
- Enclosure Material: 18mm, 13-Ply Birch Plywood with EV Coat
- Grille: 16AWG Steel with Powder coat
- Suspension: 8 x M10 Suspension Points
- Power Consumption: 1.6 to 0.8 A
- Weight: 27.7 kg
- Dimensions
- Height: 691 mm
- Width: 431 mm
- Depth: 447 mm
