Sold with a 36 MONTH Return to Base Warranty from ELECTRO-VOICE

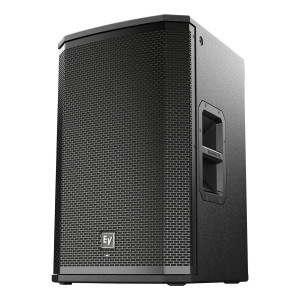

The ETX-12P provides a linear response across an extended frequency range. It is equipped with a 12” woofer for low frequencies and a 1.25” compression driver that covers up to 20kHz, resulting in sound reproduction suitable for various scenarios. The speaker can deliver maximum SPLs of 135dB, maintaining clarity even at high volumes.
Consistent coverage is maintained regardless of audience position. The patented waveguide offers uniform bandwidth response and wide dispersion. Positioned at the front of the enclosure, the waveguide helps minimise latency correction and offers consistency across listening environments.
The system's DSP includes built-in presets to facilitate setup, including options for speaker application, crossover frequencies, and top/sub configurations. Boundary compensation filters are included to ensure consistent performance in multiple applications, such as use as a floor monitor, on a tripod, or suspended. Adjustable delay, a 3-band EQ, and selectable high-crossover points provide control over the sound output.
Features
- High performance loudspeaker, perfect for professional applications
- Packs a punch with 2000W peak power handling
- Highly sensitive transducers for ultra-clear sound
- Impactful bass from a 12” LF SMX woofer
- Pristine high end from a 1.25” titanium compression driver
- Compact, powerful, and efficient class-D amplification
- Pristine sound at high volumes with a maximum 135dB peak SPL
- Ultra-wide dispersion thanks to Signal Synchronised Transducers waveguide design
- Best-in-class processing and control with the integrated FIR-Drive DSP
- Easy to use LCD display with rotary knob on the back of your speaker
- Solid ply-birch enclosure ensures minimal resonance for articulate sound
- Rugged construction with a scratch and scuff resistant coating
- Easy to mount with integrated pole receptacles
- Transport with ease thanks to the ergonomic carry handles
- Ideal for live sound and installation applications
Specifications
- Frequency Response (-3 dB): 55Hz – 20 kHz
- Frequency Range (-10 dB): 43Hz – 20 kHz
- Maximum SPL 1m: 135 dB Peak
- Coverage (H x V): 90° x 60°
- Power Rating: 2000W
- LF Transducer: SMX2120 300mm (10”)
- HF Transducer: DH3-B 1.25'' Titanium Compression Driver
- Crossover Frequency: 1600Hz
- Connectors: 2 x XLR/TRS Combo Jack & 1 x XLR Link Output
- Enclosure Material: 18mm, 13-Ply Birch Plywood with EV Coat
- Grille: 16AWG Steel with Powder coat
- Suspension: 8 x M10 Suspension Points
- Power Consumption: 1.6 to 0.8 A
- Weight: 23.6 kg
- Dimensions
- Height: 613 mm
- Width: 381 mm
- Depth: 400 mm
