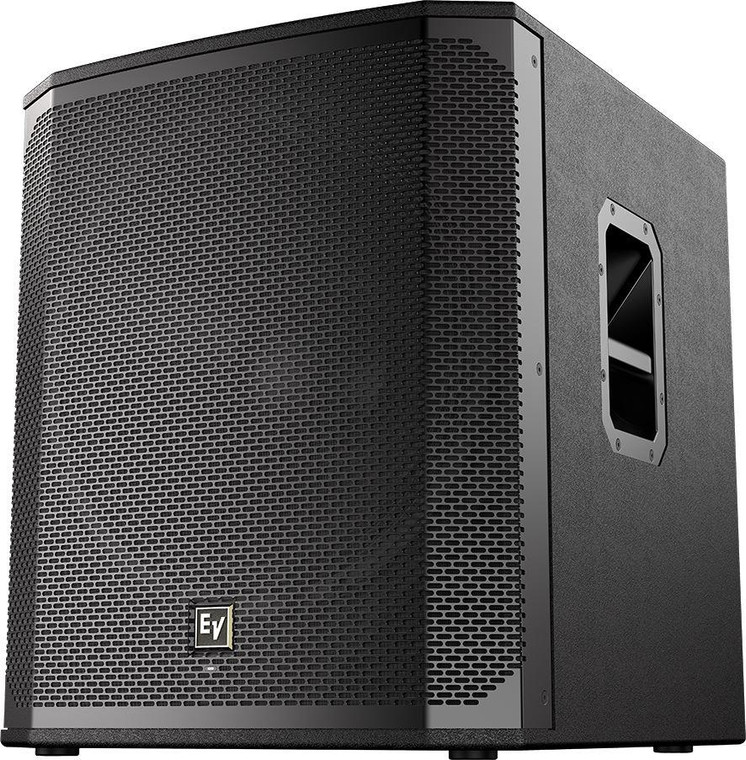

Electro-Voice ELX200-18SP Lightweight 18" 1200W Active Subwoofer

It's easy to get lost. Endless menus, complex parameters, unnecessary switches - they all just get in the way. That's why the Electro-Voice ELX200-18SP doesn't have them. Intelligently designed for intuitive operation, ELX200 subwoofers pump out sensational sound in seconds.

Configure up to six ELX200 speakers and subwoofers simultaneously from anywhere in the room. The QuickSmartMobile app puts control right in the palm of your hand thanks to Bluetooth connectivity. And when you're adjusting your sub from the rear panel, take advantage of EV's best-in-class QuickSmartDSP. Application-specific presets, user-programmable pre-sets, visual monitoring and more. It's all there to give you quick and simple adjustability.

But just because it's easy to use doesn't mean that quality is sacrificed. Quite the opposite in fact. A 1200W amp drives the sub's high-sensitivity transducer to deliver a deep, defined low-end with a huge maximum SPL of 132dB. All without distortion. And with its rugged construction and pro-grade hardware, you have everything you need for both portable and installed applications.

 Features

• Phenomenal versatility in an ultra-lightweight format
• Wireless control and monitoring with the Bluetooth® EV QuickSmart Mobile app
• Control your sound whilst you're in front of your system
• App can be used to configure up to six ELX200 loudspeakers and subwoofers simultaneously
• Receive immediate notifications during critical performance conditions
• Super-efficient Class-D power amplifier for distortion-free maximum SPLs
• High-sensitivity transducer designed and engineered by Electro-Voice themselves
• QuickSmartDSP for best-in-class processing via EV's signature single-knob user interface and LCD
• Simple setup with three presets - Music, Live, and Club - and five user-programmable presets
• Sub/top system-match crossovers, input level control and metering, and master volume for gain structure optimisation
• Rugged 15mm wooden cabinet with a durable EVCoat finish
• Integrated M20 threaded pole-mount plate for reliable sub/top stacking
• Easy to transport with two ergonomic handles
• Undergone over 500 hours of Electro-Voice's abuse and endurance testing for maximum reliability
• Ideal for use in both portable and installed applications

Specifications

• Frequency Response:
• -3dB: 47Hz - 105Hz
• -10dB: 40Hz - 145Hz
• Maximum SPL: 132dB
• Power Rating: 1200W
• LF Transducer: EVS-18L, 18'' / 457mm
• Low-Pass Frequency: Adjustable - 80Hz, 100Hz, 120Hz, 150Hz
• Connectors:
• 2 x XLR-1/4'' TRS combo jacks
• 2 x XLR link outputs
• Cabinet:
• Material: 15mm plywood
• Finish: EVCoat (durable polyurea top-coat finish)
• Grille: 18-AWG steel with powder coated finish
• Colour: Black
• Pole Mounting: M20 threaded pole-mount plate
• Power: 100-240V, 50/60Hz (1.8A consumption at 1/8 power)
• Dimensions: 600mm x 507mm x 574mm / 23.7'' x 20'' x 22.6'' (H x W x D)
• Weight: 29kg / 64lbs
