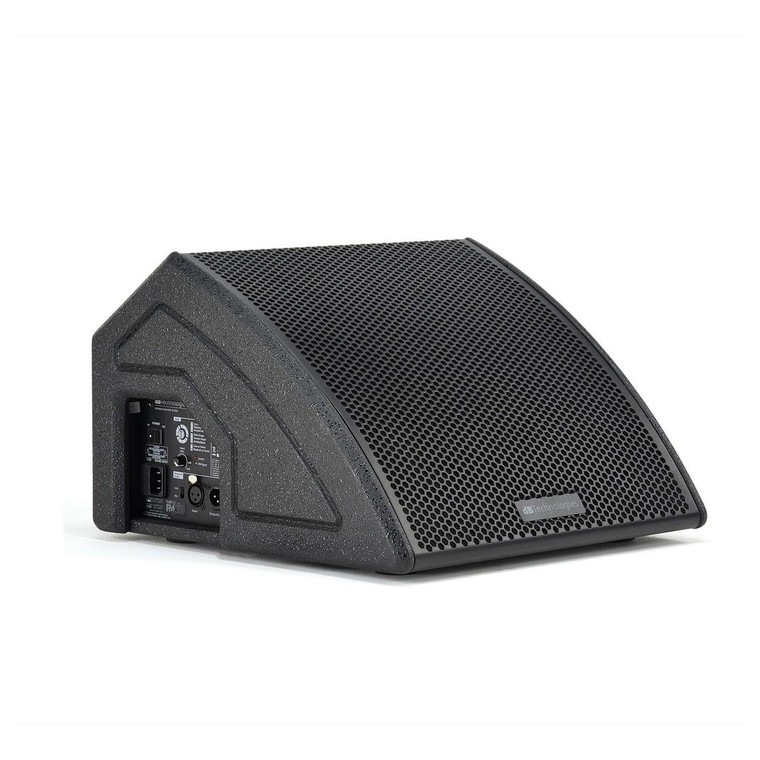

dB Technologies FMX10 10" 400W RMS 2 Way Coaxial Powered Active Floor Monitor

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board pre-sets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

Features

• 2-way active stage monitor with a coaxial design
• 400W RMS Class-D amplifier drives a 10'' LF woofer and 1'' HF transducer
• Custom rotatable horn design for optimising directivity
• Advanced DSP with linear phase FIR filters for even, intelligible sound
• Eight on-board pre-sets adapt the EQ for different needs
• Intuitive operation with exceptional sonic results
• Innovative front-rear grille design protects your components
• Robust plywood cabinet for maximum durability
• 36mm pole receptacle provides an easy mounting solution
• Ergonomic handle allows for hassle-free manoeuvrability

Specifications

• Speaker Type: 2-way active coaxial stage monitor
• Frequency Response:
• -10dB: 57Hz - 19kHz
• -6dB: 65Hz - 16.5kHz
• Maximum SPL: 125dB
• HF Transducer: 1'' exit, 1'' voice coil
• Horn: Rotatable
• Directivity: 60° x 90° (H x V)
• LF Transducer: 10'' diameter, 2'' voice coil
• Crossover: 1800Hz (24dB/oct)
• Amp Class: Class-D
• Power: 400W (RMS) / 800W (peak)
• PSU Technology: SMPS
• Controller: DSP 28/56-bit
• AD/DA Converter: 24-bit/48kHz
• System Presets: 8 presets
• Limiter: Peak, RMS, Thermal
• Advanced DSP Function: FIR filters
• Controls: DSP programs rotary encoder, Line/Mic switch, Input Sensitivity level
• Signal Inputs: 1 x balanced XLR connector
• Signal Out/Link: 1 x balanced XLR connector
• Mains Connection: VDE
• Housing:
• Material: Plywood
• Design: Multifunctional
• Grille: Full metal
• Handles: 1 x integrated on bottom side
• Pole Mount Receptacle: 36mm
• Operating Voltage: 220-240V, 50-60Hz
• Power Draw: 0.8A (at 1/3 of full power in maximum use conditions)
• Dimensions: 390mm x 268mm x 411mm / 15.35'' x 10.55'' x 16.18'' (W x H x D)
• Weight: 11.3kg / 24.9lbs
