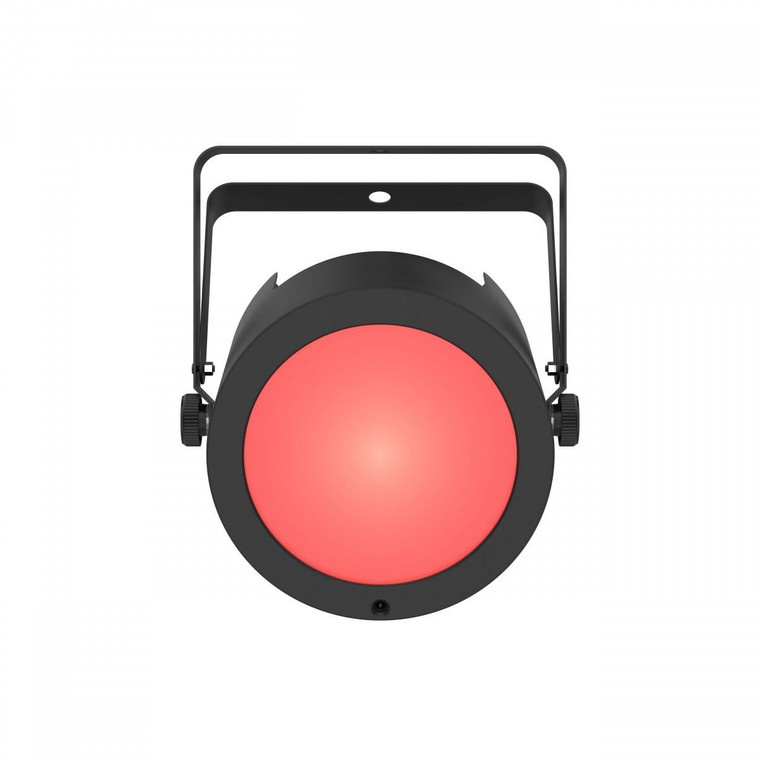

Chauvet DJ COREpar Q120 ILS 120W LED COB Par Can ILS USB RGB Spot Light

The Chauvet DJ COREpar Q120 ILS is a compact but powerful par can for live event lighting. Its chip-on-board LED design allows for smooth, versatile RGBW colour mixing, to help you evoke a range of moods. The inclusion of a magnetic fresnel lens allows you to quickly adjust the beam angle of the light from extremely wide atmospheric washes to tight spotlighting.

The COREpar Q120 ILS, as it name suggests, is equipped with Chauvet's ILS control system for easy control from any ILS control system without the need for DMX. However, for more traditional setups, the COREpar Q120 also features standard DMX and a powered USB port for compatibility with wireless D-Fi control. This par can features a durable metal housing with a sit-flat design for easy positioning on floors.

New Integrated Lighting System (ILS)

DMX is daunting, but Chauvet DJ’s Integrated Lighting System (ILS) isn’t. Using the new GigBAR Move + ILS as its core, ILS enables advanced, coordinated shows across multiple fixtures. So you can get a complete lighting ecosystem, without the complications.

Any ILS fixture can slave to the GigBAR Move + ILS. Lights and effects will then work together, without the need for any programming. Just use automatic, sound-to-light, or manual control modes. And you can make adjustments to colour, speed and more as you go.

Please note: ILS functionality requires the GigBAR Move + ILS (not included)

Features

• Versatile par can light with Chip-on-Board LED design
• COB LEDs provide smooth RGBW colour mixing and more consistent brightness
• ILS compatibility provides alternative control via GigBAR Move ILS
• Powered USB port on board for compatibility with wireless D-Fi DMX control
• Included Fresnel lens provides wide control over beam angle from narrow to wide
• Durable metal housing provides reliability on-stage or during tours
• Sit-flat housing sits naturally on floors
• Side-mounted power and DMX outlets for easy access
• Flicker-free projection suitable for use on camera for film, TV, or theatre use
• Power output and power linking compatibility for simpler cable runs
• Compatible with Chauvet's wireless infrared IRC-6 remote for easy operation at-range
• Built-in LED display allows you to adjust and create custom colours
• Smooth fading with built-in dimming curves
• Compatible with Chauvet CHS-40 VIP gear bag

Specifications

• DMX Channels: 4 or 9
• DMX Connectors: 3-pin XLR
• Light Source: 1 COB LED (quad-colour RGBW) 120 W (6.9 A), 50,000 hours life expectancy
• Strobe Rate: 0 - 29 Hz
• Beam Angle (without lens): 56°
• Field Angle (without lens): 100°
• Beam Angle (with lens): 20°
• Field Angle (with lens): 30°
• Illuminance (without lens): 868 lux @ 2 m
• Illuminance (with lens): 4639 lux @ 2 m
• Colour Temperature Range: 2700 - 6000 K
• Cable Length: 5 ft (1.5 m)
• Power Linking: 6 units @ 120 V; 10 units @ 230 V
• Input Voltage: 100 - 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 100 W, 1.3 A @ 120 V, 60 Hz
• Power and Current: 94 W, 0.7 A @ 230 V, 50 Hz
• Bracket Mounting Hole: 13mm
• Optional Controllers: IRC6, D-Fi USB
• Approvals: CE, RoHS, UKCA
• Weight: 4.6 lbs (2.1 kg)
• Size: 8.9 x 7.4 x 9 in (225 x 188 x 228 mm)
