RCF J Series Column PA System

Italian speaker manufacturer RCF introduces the new EVOX J portable column systems, centered on true 3-way performance, constant wide coverage, and faster real-world workflows. The lineup includes EVOX J9, EVOX JMIX9 (with integrated digital mixing and wireless control), and EVOX J11.

---

Since their debut, EVOX systems have garnered acclaim for their sound quality, elegant design, and
tour-proven reliability. The latest true-3-way architecture combines powerful, professional sound with a centered acoustic image that feels natural and balanced, with the focused precision of a point- source system. Inside, purpose-built RCF transducers and amplifiers deliver impressive SPLs and pristine audio.

Outside, an unobtrusive, minimal enclosure —available in black or white finishes—disappears into any décor. Whether you’re spinning tracks, playing in a band, performing on stage, or hosting a corporate event, there’s an EVOX ready to deliver. Choose standard models for true plug-and-play simplicity—or step up to the EVOX JMIX9, with its integrated digital mixer, for full mix control wherever the music takes you.

---

What systems are in the new RCF J Series range?

Model	What is it?	Key Specs	Who is it for?
EVOX J9	Active, true 3-way portable column system	130 dB Max SPL, 2100 W Class-D, 1.75” neo compression driver + TRW 120°×40°, 6×3” neo transducers, 12” woofer	DJs, bands, and performers needing big output in a minimal footprint
EVOX JMIX9	J9 + integrated digital mixing	All J9 Specs with an 8-channel stereo mixer, 2.4” color touch display, app control	Performers, bands, DJs, conference spaces or all applications needing an all-in-one rig with routing, control, and fast setup
EVOX J11	Higher-output true 3-way portable column system	132 dB Max SPL, 3500 W Class-D, 1.75” neo compression driver + TRW 120°×40°, 12×3” neo transducers, 12” woofer, PowerCON TRUE1-TOP	When you need more headroom/coverage authority without losing portability

EVOX J9 Portable Column PA System:

EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. With a streamlined aesthetic, the premium composite design delivers unparalleled acoustic fidelity, raw power, and ease of deployment. EVOX J9 is the perfect fusion of Italian engineering and sophisticated design, ready to elevate any setting.

EVOX J9 Specifications:

• 130 DB Max
• 2100 W Class D Amplifier
• Built in DSP
• 1.75” Neo Compression Driver
• 120° x 40° True Resitive Waveguide
• 6 x 3” Full-Range Neo Transducers
• 12” RCF Precision Low-Frequency Woofer

EVOX J9 Setup, Impact and Footprint

Available in black or white, EVOX J9 includes a lightweight aluminum-alloy pole that links the column to the subwoofer and integrates all required connections for fast setup. Height is configurable, with the option to connect the column directly to the bass enclosure or increase height with full- or half-pole extensions.

EVOX J9 incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

EVOX J9 Acoustic Performance

A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Powered by a 2-channel 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output, Club for extended lows and crisp highs; and Voice for optimized intelligibility.

EVOX JMIX9 Portable Column PA System:

Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. It’s the ideal solution when a compact, all-in-one sound system is required. Best-in-class sound, power and reliability, with RCF-engineered components, premium materials, and a studio-quality signal chain.

EVOX JMIX9 Specifications:

• Internal Stereo Digital Mixer
• 130 DB Max
• 2100 W Class D Amplifier
• Built in DSP
• 1.75” Neo Compression Driver
• 120° x 40° True Resitive Waveguide
• 6 x 3” Full-Range Neo Transducers
• 12” RCF Precision Low-Frequency Woofer

The EVOX JMIX9 as an All-in-One Solution

Compact yet powerful, available in black and white finishes, JMIX9 is engineered to meet the needs of diverse environments, from intimate acoustic sets and DJ nights to corporate presentations, house-of-worship services, and celebratory events. Load-in and load-out are streamlined thanks to fast setup and teardown,
reduced stage clutter, and minimal external equipment. With all essential tools built into a compact footprint, the system delivers maximum flexibility for any event.

Studio-Grade Inputs

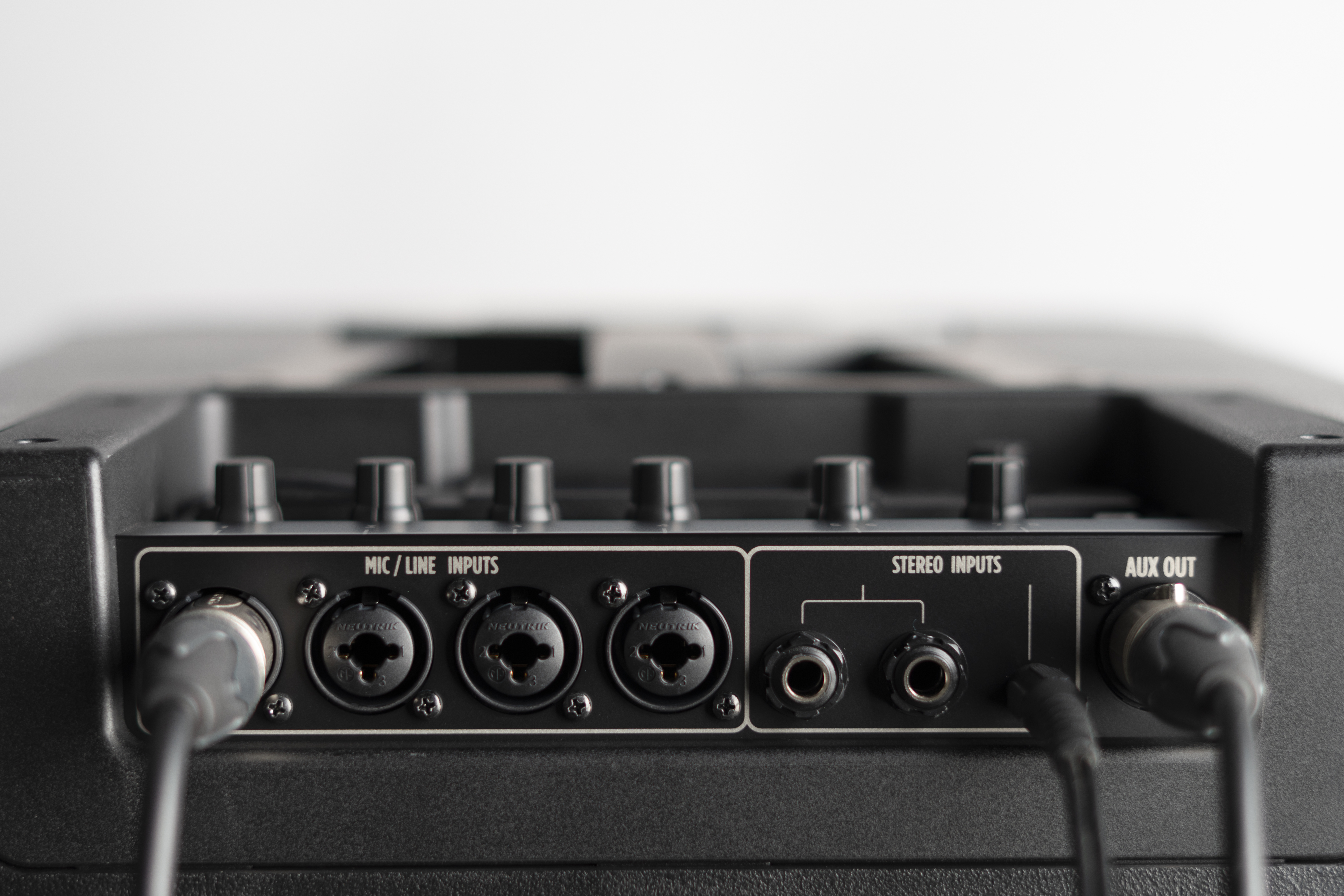

JMIX9 is equipped with four MIC/LINE inputs with combo connectors, high-performance THAT® preamps, (each with individual phantom power) and digital gain control. Inputs 1–4 can be linked as stereo pairs for keyboards, instruments, or playback sources. Inputs 5–8 include a stereo TRS line input and a stereo 3.5 mm input shared with Bluetooth® connectivity for audio streaming. Each input channel offers a high-pass filter, compression, and a 3-band EQ for precise tonal shaping. Internal stereo reverb with individual send levels adds professional polish to vocals and instruments.

EVOX JMIX9 Digital Mixer Features

• Mono/Stereo operation, with dedicated XLR out for stereo pairing with EVOX J9.
• High-pass and a 3-band EQ on each channel, and one-knob compression on channels 1 - 4.
• Flexible Audio Ducker plus Stereo Reverb send.
• Main Output with stereo 8-band EQ.
• AUX Bus with 8-band EQ, pre/post selection, and dedicated XLR output for monitoring, FX or additional output.

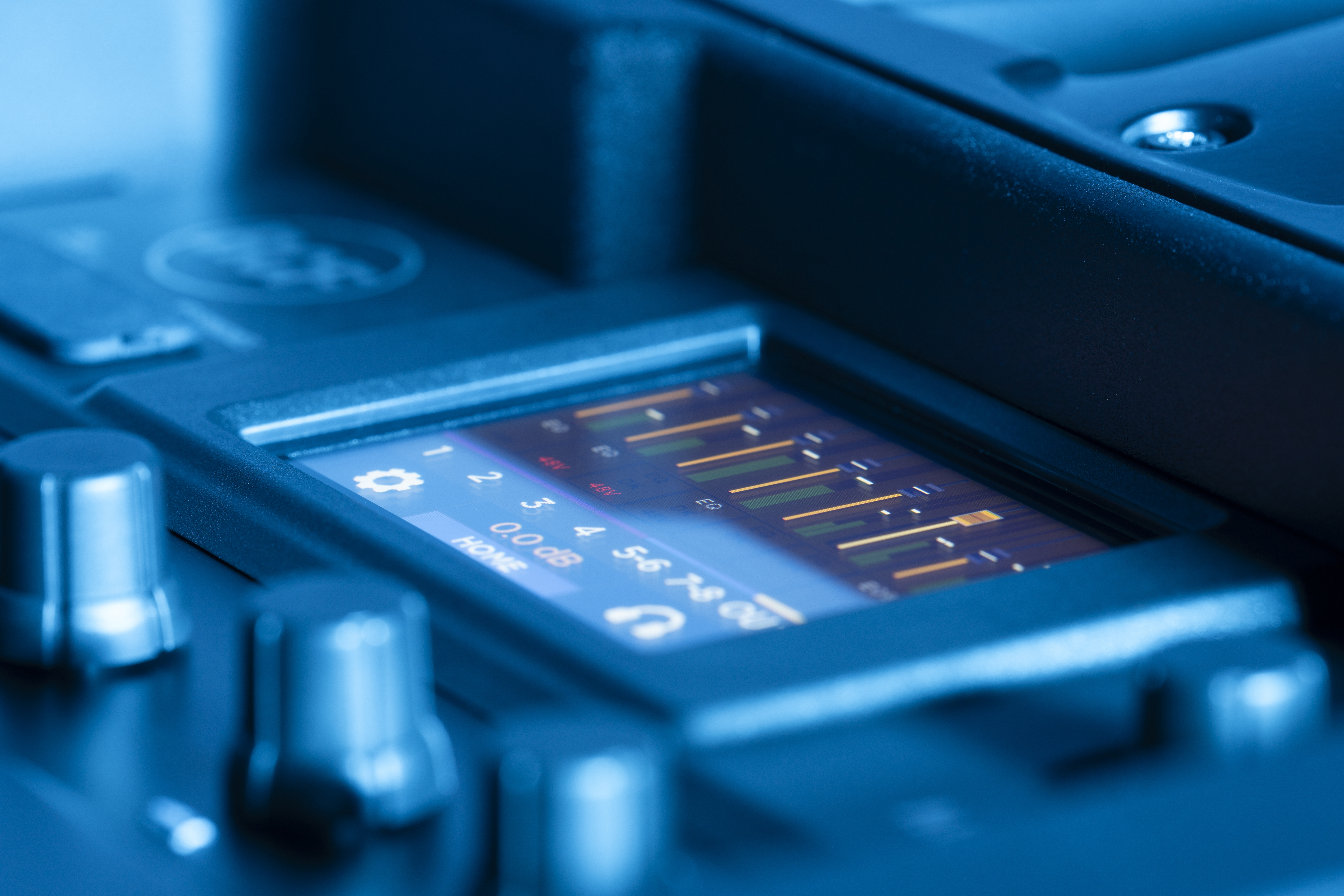

The 2.4” color touch display interface is optimized for clear, efficient control, complemented by high-quality endless encoders and gesture support for accelerated workflow. A dedicated Main Level control ensures straightforward control at all times. EQ Fast Edit provides instant access to EQ curves with automatic zooming for accurate parameter control. A fully assignable MULTI pushbutton gives quick access to essential tasks, including All Mute, Attenuation, FX Mute, Ducker and more. Scene save/load capability allows instant recall of performance setups. A screen-lock function prevents accidental changes during operation.

Wireless Control with the new JMIXRemote App

The JMixRemote app provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth® Low Energy (BLE) link. The app is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).

EVOX J11 Column PA System

EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. Neutral and minimal, EVOX J11 stays out of the spotlight and simply delivers. Whether used in corporate spaces or at a party, the sound is clean, with high dynamics, vocal clarity, and a fast, controlled low end for both sitting and standing audience. Free-standing elegance, quick setup, and power at the highest level.

EVOX J11 Specifications:

• 132 DB Max SPL
• 3500 W Class D Amplifier
• Built-in DSP
• 1.75” Neo Compression Driver
• 120° x 40° True Resistive Waveguide
• 12 x 3” Full-Range New Transducers
• 12” RCF Precision Low Frequency Woofer
• Powercon TRUE1-TOP Mains Connector

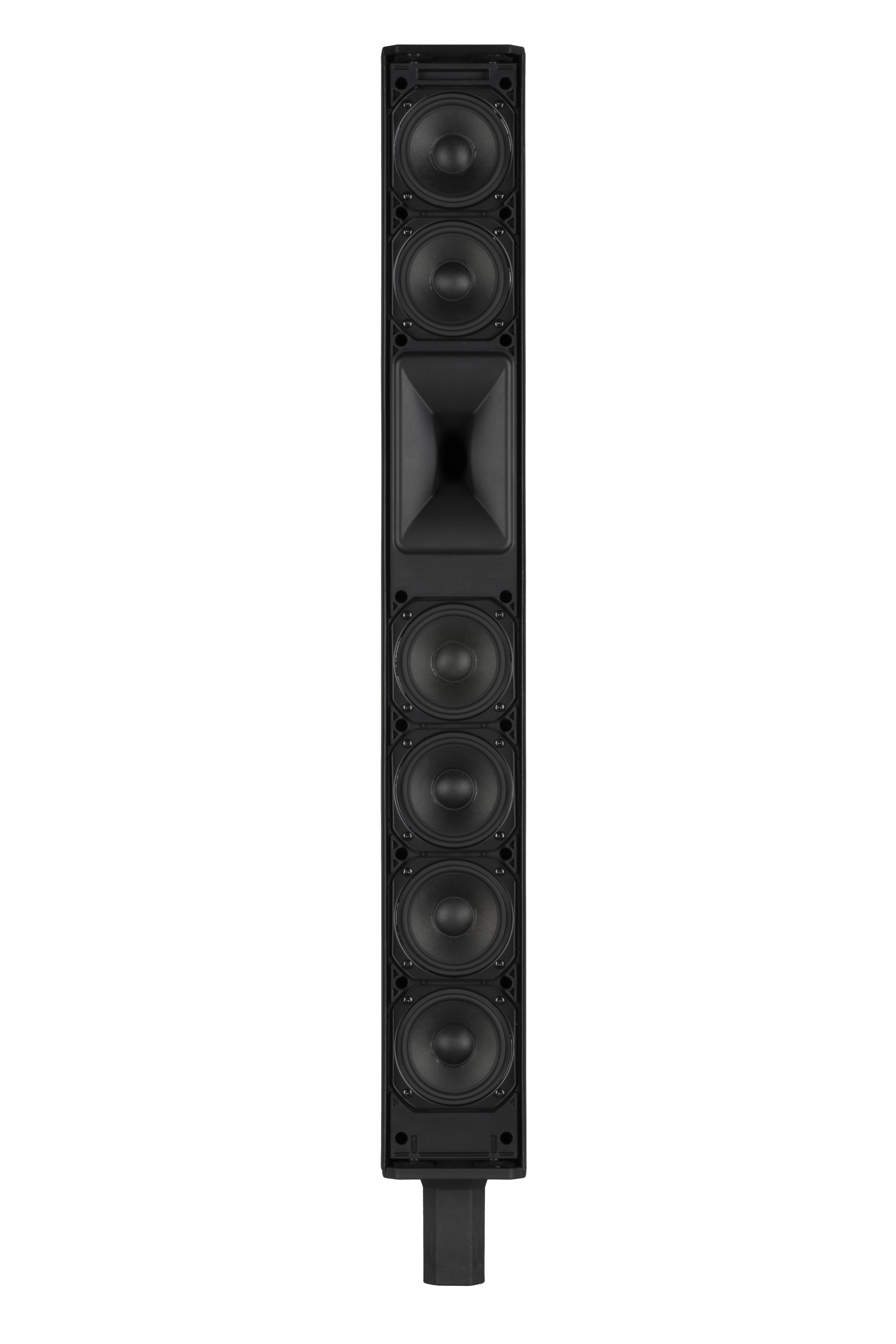

True Three-Way Column Array

Through precise alignment of the waveguide and full‐range transducer array, the EVOX J11 ensures a unified acoustic center, enabling the system to radiate as a single, coherent source. This advanced acoustic design, combined with FiRPHASE DSP, delivers phase- accurate response, outstanding intelligibility, and exceptional clarity throughout the listening area.

EVOX J11 Setup, Impact and Footprint

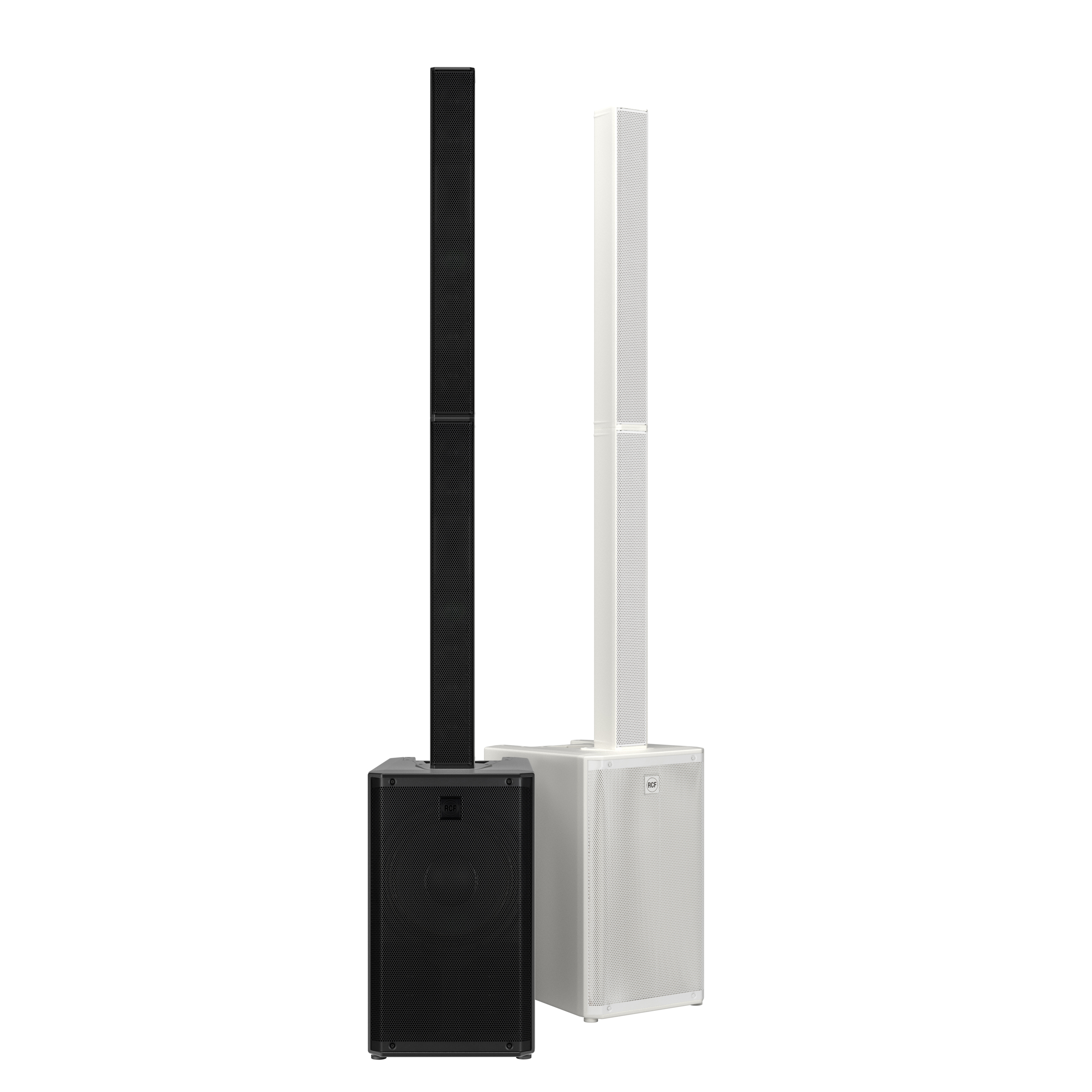

Available in black or white, EVOX J11 integrates all required connections for fast setup. Despite its power and size, its sleek design remains unobtrusive and neutral, blending into any environment. The included padded carrying bag for the two-piece column array makes moving the system effortless.

A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures detailed, robust high frequencies, while 12 × 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver immersive mids and deep, potent lows.

Driven by a 2-channel 3500 W onboard Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Four equalization presets are available: Live for intelligible balance in real-world setups, Linear for perfectly flat, neutral output, Club for extended lows and crisp highs, and Voice for optimized intelligibility.

RCF J Series Specifications Comparison

ACOUSTICAL SPECIFICATIONS:	J9 / JMIX9	J11
Frequency Range	130 dB	132 dB
Max SPL @ 1m	120°	120°
Vertical Coverage Angle	40°	40°
TRANSDUCERS:
Compression Driver	0.75’’ neo, 1.75’’ v.c	0.75’’ neo, 1.75’’ v.c
Fullrange	6 x 3.0’’ neo, 1.0’’ v.c	12 x 3.0’’ neo, 1.0’’ v.c
Woofer	12’’, 2.5’’ v.c	12’’, 2.5’’ v.c
INPUT / OUTPUT SECTION:
Input Signal	bal/unbal	bal/unbal
Input Connectors	Combo XLR/Jack	XLR/Jack
Output Connectors	XLR	XLR
Input Sensitivity	-2 dBu / +4 dBu	-2 dBU / +4 dBu
PROCESSOR SECTION
Crossover Frequencies	160 / 1600 Hz	160 / 1600 Hz
Protections	Thermal, RMS	Thermal, RMS
Limiter	Soft Limiter	Soft Limiter
Controls	Volume + Presets: Linear/Live, Club, Voice	Volume + Pesets: Linear, Live, Club, Voice
POWER SECTION
Total Power	2100 Watts Peak	3500 Watts Peak
High Freqencies	700 Watts Peak	1500 Watts peak
Low Frequencies	1400 Watts Peak	2000 Watts Peak
Connections	VDE	Powercon TRUE1 In/Out
PHYSICAL SPECIFICATIONS
Cabinet Material	PP Composite	PP Composite
Handles	1 x Top	1 x Top
Grille	Steel	Steel
Colours	Black / White	Black / White
Height	2080mm / 81.89" inches	2080mm / 81.89" inches
Width	350mm / 13.78" inches	350mm / 13.78" inches
Depth	462.6mm / 18.21" inches	462.6 / 18.21" inches
Weight	26.5kg / 58.42lbs	29kg / 63.93lbs

EVOX JMIX 9 Specifications

• Digital Processing: 48 kHz Sample Rate, 32-bit DSP
• Audio Inputs: 4 MIC / LINE input with programmable gain (COMBO), 1 stereo LINE input (TRS), 1 stereo LINE input (3.5 mm minijack), 1 stereo Bluetooth audio streaming input (Bluetooth® 5.3)
• Audio Outputs: MIX OUT (XLR, balanced, on amplifier panel), AUX OUT (XLR, balanced, on mixer panel), Headphones Output (3.5 mm minijack)
• Other Ports: USB C: 500 mA charger and firmware update port
• User Interface: 2.4” Color Display with capacitive touch, 7 endless encoders and programmable pushbutton
• Remote Control: JMixRemote app for iOS and Android smartphones, via BLE
• Input Channel processing: HPF, 3-band equalizer, 1-knob compressor (channels 1-4 only)
• Internal Effects: Digital Stereo Reverb with send level controls for each input, Ducker with multiple source selection
• Main Output: 8-band parametric equalizer; stereo or mono mode
• Aux Output: Selectable pre/post level controls for each input, and 8-band parametric equalizer
• Headphone Output: Assignable to Aux Output or Main Output, with 3-band equalizer

RCF J Series FAQ:

Why have RCF created new column PA systems?

EVOX is one of RCF’s most successful product families worldwide, proven in real-world applications for more than a decade. It has become a go-to standard for DJs, small live performances, and rental inventories that need predictable results night after night, from parties to corporate events and celebrations. After the strong
response to EVOX J8, built on the winning formula of the original EVOX 8, RCF has taken the next step with a complete redesign: not only a new look, but a fully renewed electroacoustic architecture engineered to deliver a clearer, more controlled, and more consistent experience in any venue.

What does “true 3-way” mean?

In the new EVOX J Series, high frequency content is handled by a 1.75” neodymium compression driver, whilst midrange is projected forward by the 3” neodymium transducer array (6 on J9/JMIX9, 12 on J11). The low frequency content is produced from a high-power 12” woofer. The 2-channel amplifier drives the mid/high section (which embeds a passive crossover). The forward radiation of the array of 3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

What DSP presets are available on the RCF EVOX J Series?

The EVOX J9 features: Live/Linear (flat/neutral), Club (extended lows + extended highs) and Voice
(for enhanced intelligibility)

The EVOX J11 features: Live (balanced EQ for live performance scenarios), Linear (flat/neutral EQ curve), Club (extended lows + extended highs) and Voice (for enhanced intelligibility)

Where are the EVOX J Series systems produced?

EVOX J9, JMIX9 and J11 are designed and made in Reggio Emilia, Italy.

What transport/protection accessories are available for the RCF J Series?

Each EVOX system includes a padded column array transport bag. Optional accessories include half and full-length pole extensions for variable height options (black or white), and protective slip-on covers, or a trolley-style cover with wheels and a handle for the subwoofer enclosure. All RCF transport and protection accessories are crafted from premium 600D polyester, feature 10 mm foam padding and a 190T taffeta inner fabric, and are secured with a durable zip-and-Velcro closure for long-lasting reliability.

The previous EVOX had an adjustable pole; why is EVOX J9/J11
fixed?

Earlier EVOX models like the EVOX 8, J8, J12, used a column made only of cone transducers, so vertical dispersion narrowed progressively as frequency increased. In those systems, pole-height adjustment helped align the column with the audience. With the new EVOX J9/J11, eahc system utilises a True Resistive Waveguide with a controlled 40° vertical pattern combined inside the cone array, providing consistent coverage for both standing and seated listeners without requiring continuous height adjustment. For situations where the audience is significantly above or below the system’s support plane (e.g., the system on a stage, or the audience on tiered seating), optional half-length and full-length pole extensions are available to raise the array (black or white). The array can also be attached directly to the subwoofer.

Is there a difference in the audio quality between the previous EVOX 8 / J8
and the new J9?

Yes, while the design philosophy is the same, the architecture is renewed from the ground up, with more power, less distortion, improved coverage precision, and overall sound quality that is notably better.

What’s new about the internal amplification?

The 2100watt and 3500watt Class-D amplifiers deliver up to 2.5x more power than the previous architecture, with ultra-fast attack, realistic transient response, and minimal thermal buildup. The 3500watt amplifier is a new platform introduced with EVOX J11 and designed to power future products.

What is the True Resistive Waveguide (TRW), and why does it matter?

TRW is designed as a low-resonance, resistive acoustic load to reduce the harshness commonly associated with traditional horn designs, while maintaining wide, consistent coverage.

What does “constant 120° × 40° coverage” mean?

Wide horizontal coverage helps keep the mix consistent across the venue; the controlled vertical pattern helps limit spill to ceilings and reflective surfaces but at the same time is useful in clubs, event rooms, and challenging acoustics like worship spaces or reverberant rooms. The wide coverage is intended to keep the audience area evenly covered.
