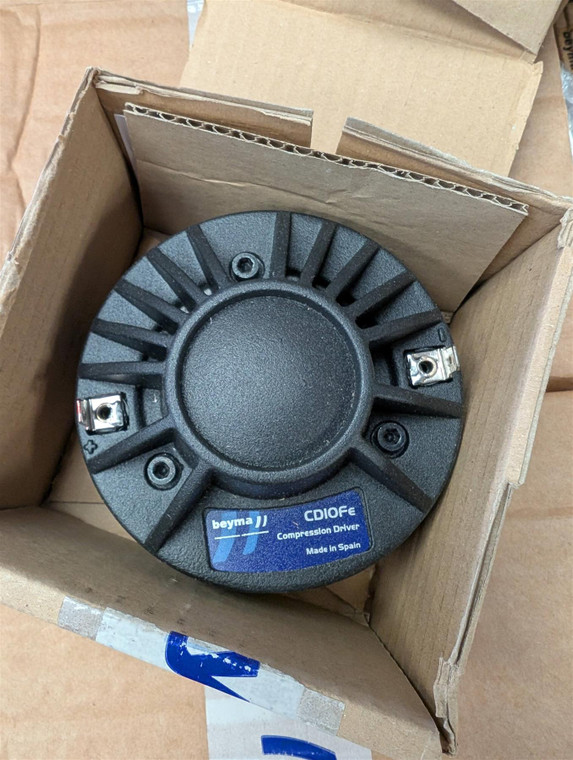

Beyma CD10Fe 1" 70W 8 Ohm Compression Driver (Open Box)

Beyma's unique, patented PM4 diaphragms incorporate a new high-tech polymer never used in audio before.

Delivering a stronger joint between the diaphragm dome and the voice coil former, resulting in high power handling and the ability to withstand extended duty cycles, PM4 diaphragms have been designed to bring a more transparent sound. After bringing excellent results to reference acoustic systems, PM4 technology is now available in a range of compression drivers of exceptionally natural tonal qualities and stability.

Features

• 1 in. (25mm) high frequency compression driver
• 109 dB, 2.83V@1m sensitivity
• Improved moving assembly mechanical coupling for excellent
• power handling capabilities
• PM-4 polymer diaphragm with higher surface tension energy
• Ultra lightweight edgewound aluminium ribbon voice coil
• Aluminium cover
• Ferrite magnet

Specifications

• Throat diameter: 25 mm. 1 in.
• Rated impedance: 8 ohms.
• C. Resistance: 4.3 ohms.
• Power capacity *: 70 w AES above 1.2 kHz
• Program power: 140 w above 1.2 kHz
• Sensitivity **: 109 dB 2.83V @ 1m (coupled to TD-164 prototype horn)
• Frequency range: 0.7 - 19 kHz
• Recommended crossover: 1.2 kHz or higher (12 dB/oct. min.)
• Voice coil diameter: 44.4 mm. 1.75 in.
• Magnetic assembly weight: 1.1 kg. 2.42 lb.
• Flux density: 1.65 T
• BL factor: 6.6 N/A

Mounting Information

• Overall diameter: 102 mm. 4 in.
• Depth: 62 mm. 2.44 in.
• Mounting: Three M5 threaded holes, 120 degrees apart
• on 57 mm. (2.24 in.) diameter circle.
• Two M5 threaded holes, 180 degrees apart
• on 76.2 mm. (3 in.) diameter circle.
• Net weight: 1.3 kg. 2.86 lb.
• Shipping weight: 1.4 kg. 3.1 lb.
