Sold with a 24 MONTH Return to Base Warranty from ALLEN & HEATH

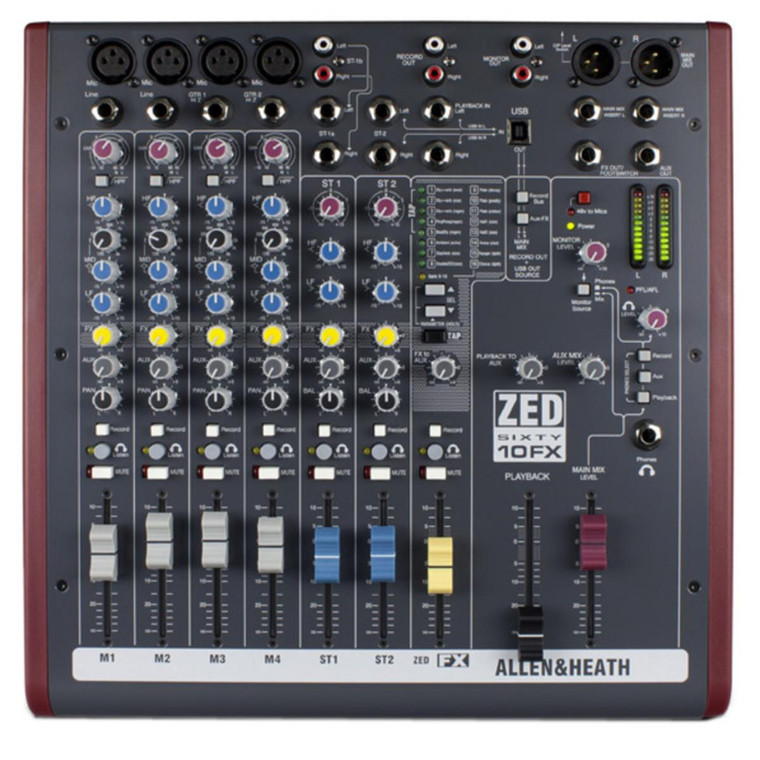

Sleek and versatile. Allen and Heath's ZED60-10FX Analog Mixer with USB is the ideal choice for musicians, self-recording artists and venues. Whether you're tracking demos at home, performing live or contributing to commercial releases. The ZED60-10FX is the ultimate companion for every step of your creative journey.
Even with its compact size, the ZED60-10FX includes one auxiliary channel and a sweepable, three-band EQ, ideal for manipulating the tone of your recordings for instant, professional results. You'll be able to capture performances and record them directly to your Mac or PC without the need for additional equipment. Make your performances resonate with the listener through the inclusion of premium Class A FET preamps. These will provide you with exceptional low noise and expansive headroom. The ZED60-10FX is a workhorse, designed to streamline your workflow and drastically improve the sonic quality of your recordings.
Ideal for easy, high quality, guitar and bass recordings
The ZED60-10FX comes with four high-fidelity preamps. These are based on Allen & Heath's MixWizard range of mixers. However, the 10FX takes things a step further thanks to the inclusion of high impedance input jacks on inputs 3 and 4. These enable you to plug your guitar or bass directly into the mixer without the need of additional equipment. If that's not enough, find yourself harking back to the golden age of recording as the preamps impart the warmth and character of vintage tubes and transformers. This is guaranteed to add power and definition to your guitar tone.
Intuitive equaliser
Shaping the tonal structure of each instrument has never been easier thanks to the ZED60-10FX. The incredibly musical, responsive three-band swept mid-frequency EQ design employs Allen and Heath's innovative MusiQ. Thanks to MusiQ, beginners can achieve musically pleasant EQ settings with the ZED60-10FX with little effort.
High quality FX choices
Equipped with professional XLR main stereo outputs and a flexible monitoring section with headphone and speaker feed outputs. In the FX version, Allen and Heath have added a set of fabulous effects to give shimmering reverbs and enhance your sound.
Features
- 4 mic/line inputs, 2 with Class A FET high impedance
- 60mm professional quality faders
- Responsive 3-band, swept mid EQ with MusiQ
- Configurable USB stereo audio in/out
- 1 pre-fade Aux send
- 1 FX send
- 2 stereo inputs
- Separate 2-track record outputs
- 16 Internal Effects
- XLR main stereo outputs with inserts
- Comprehensive monitoring
- 48V microphone phantom power
- DI level switching with Gain Boost
- Neutrik XLRs and 1/4-inch jacks
Specifications
- Channels: 10
- Computer Connectivity: USB (2 x 2)
- Faders:8 x 60mm
- Inputs - Mic Preamps: 4 x XLR, etc.
- Phantom Power: Global
- Inputs - Line: 4 x 1/4" (Ch 1-4), 6 x 1/4" (Ch 5-10 Stereo), 1 x RCA (Ch 5 Stereo)
- Outputs - Main: 2 x XLR
- Outputs - Other: 4 x RCA (record, monitor)
- Aux Sends: 1 x 1/4"
- Headphones: 1 x 1/4"
- USB: 1 x Type B
- Other I/O: 1 x 1/4" (footswitch)
- EQ Bands: 3-band, Sweepable Mid (Ch 1-4), 2-band (Ch 5-10 Stereo)
- Effects: Yes
- Power Source: AC power supply
- Height: 3.7"
- Width: 13.2"
- Depth: 13.6"
